Hood, Adjusting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

For basic setting of hood -1-, vehicle must stand on the ground and catches must be removed.

-- Remove catches, item 1. See HOOD LOCKING AND UNLOCKING COMPONENTS OVERVIEW .

-- Remove gas-filled strut -2- at hood -1-. Refer to GAS STRUT .

-- By loosening hex nuts -5- and bolt -3- at left and right on lid hinge -4- (do not unscrew completely), hood -1- can be aligned between fenders.

-- In rear area, height of hood -1- can be adjusted to fenders with adjusting screw -6- on left and right sides.

-- Stop buffers -7- (quantity: two) do not serve to adjust. Their function is to stabilize and to cushion the hood -1-.

-- Hood -1- can be adjusted in height relative to fenders in the front area using the stops -8- (quantity: two).

Make sure gap dimensions are uniform.

-- After assembly or adjustment work, apply corrosion protection measures onto lid hinge -4-, hex nuts -5- and bolts -3-.

-- After hood -1- has been adjusted, catches can be reinstalled and adjusted. Refer to item 1. See HOOD LOCKING AND UNLOCKING COMPONENTS OVERVIEW .

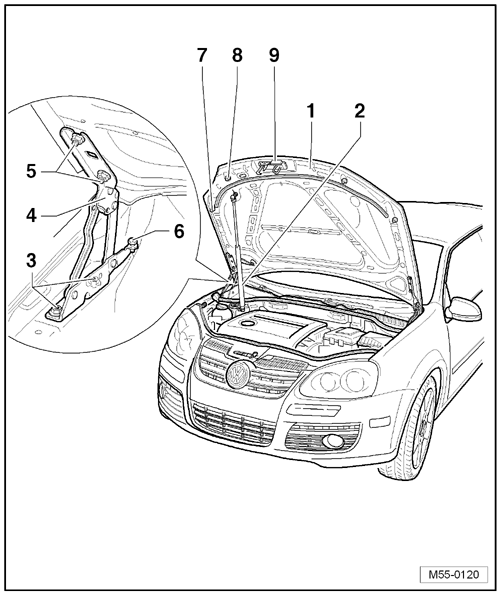

Fig 1: Identifying Hood, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
