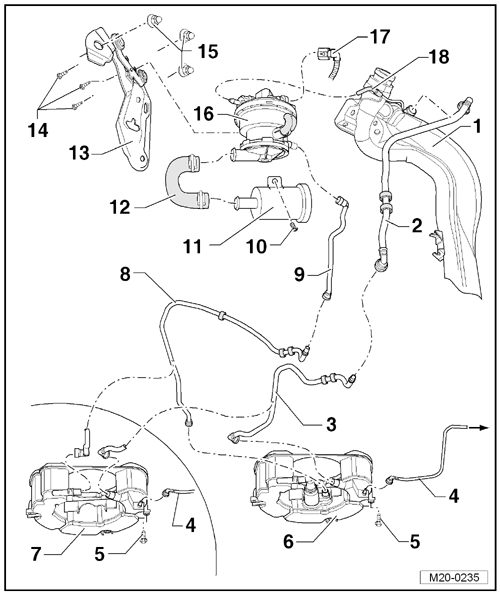

EVAP System Component Overview
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Tank
- Vent Line
- Behind the right rear wheel housing liner.
- Vent Line
- On the vehicle floor.
- Vent Line
- To the EVAP canister purge regulator valve 1 -N80- at the intake manifold.
- To remove, press the release button.
- Bolt
- 8 Nm
- Evaporative Emission (EVAP) Canister
- for engine codes BGQ and CBUA.
- Installed location: On the bottom of the spare tire wheel well.
- Removing and installing, refer to EVAP CANISTER .
- EVAP Canister
- For engine codes BGP and CBTA.
- Installed location: On the bottom of the spare tire wheel well.
- Removing and installing, refer to EVAP CANISTER .
- Connecting Pipe
- Pressure side.
- On the vehicle floor.
- Connecting Pipe
- Pressure side
- Behind the right rear wheel housing liner.
- Bolt
- 3 Nm
- Air Filter Housing
- For the leak detection pump.
- Connecting Hose
- Intake side.
- Bracket
- For the leak detection pump.
- Secured inside the right rear wheel housing.
- Bolt
- 2 Nm
- Nut
- 9 Nm
- Leak Detection Pump -V144-
- Installed location: Under the right rear wheel housing liner.
- Removing and installing, refer to Leak Detection Pump -V144- .
- Connector
- Black, 3-pin
- Vacuum Line
- Vehicles through MY 09: from the intake manifold.
- Vehicles from MY 10: from the connection to the vacuum line between the vacuum pump and the brake booster.
