Exhaust System Overview

WARNING: This page is about a different car, the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

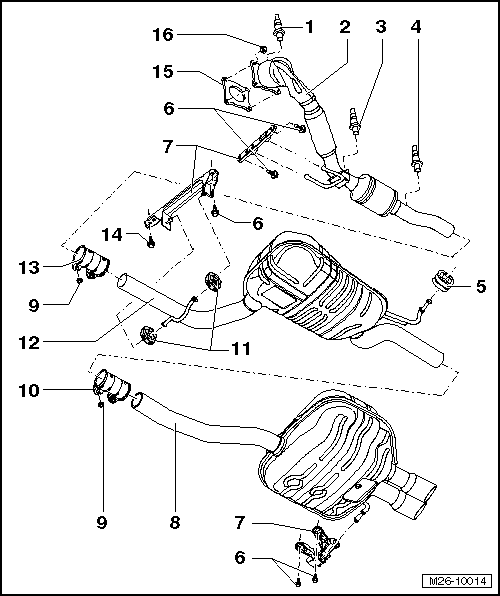

Fig 1: Identifying Exhaust System Overview
GWWM26-10014Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Heated Oxygen Sensor -G39-
    • 55 Nm
    • Bank 1 sensor 1
    • Lubricate the threads with hot bolt paste.
    • Make sure the hot bolt paste does not get into the slits in the sensor body.
  2. Front Exhaust Pipe with Catalytic Converter
    CAUTION:

    Danger of damaging the flex joint:

    • The flex joint must not be bent more than 10°.
    • Do not load the flex joint.
    • Do not damage the wire mesh at the flex joint.
  3. Heated Oxygen Sensor 2 -G108-
    • 55 Nm
    • Bank 1 sensor 2
    • Lubricate the threads with hot bolt paste.
    • Make sure the hot bolt paste does not get into the slits in the sensor body.
  4. Oxygen Sensor after Three Way Catalytic Converter -G130-
    • 55 Nm
    • Bank 1 sensor 2.
    • Lubricate the threads with hot bolt paste.
    • Make sure the hot bolt paste does not get into the slits in the sensor body.
  5. Retaining Loop
    • Replace if damaged.
    • Follow the part number.
  6. Bolt
    • 23 Nm
  7. Suspended Mount
    • Replace if damaged.
  8. Rear Muffler
  9. Nut
    • 23 Nm
  10. Rear Clamping Sleeve
    • For individual replacement of the front and rear mufflers.
    • Note the installed position, refer to Fig 2.
    • Tighten the nuts evenly.
  11. Retaining Loop
    • Replace if damaged.
    • Follow the part number.
  12. Front Muffler
  13. Front Clamping Sleeve
    • Before tightening the exhaust system, adjust it when it is cold so that it is free of tension. Refer to EXHAUST SYSTEM, ALIGNING .
    • Note the installed position, refer to Fig 2.
    • Tighten the bolts evenly.
  14. Bolt
    • 26 Nm
    • Always replace.
    • For attaching the fuel tank.
  15. Gasket
    • Always replace.
  16. Nut
    • 40 Nm
    • Always replace
    • Lubricate the stud bolts on the exhaust manifold with hot bolt paste.
Fig 2: Identifying Clamping Sleeve Location
GWWA26-0277Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- When installing the clamping sleeve, ensure that the bolt end -arrow- does not project beyond the lower edge of clamping sleeve:
