Clutch Housing, Servicing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 Volkswagen Jetta, 2005 Volkswagen GTI, 2004 Volkswagen Jetta, 2004 Volkswagen GTI, and 2003 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

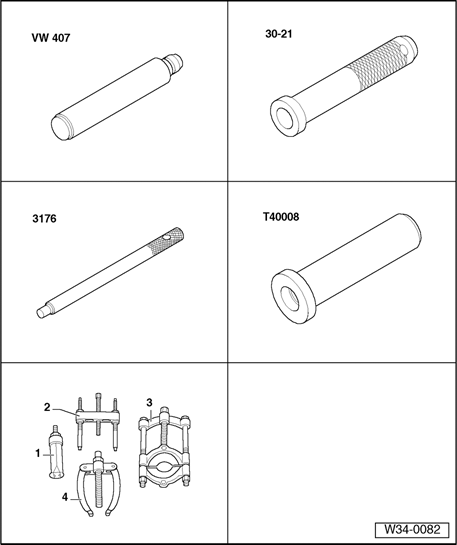

Fig 1: Identifying Special Tools - Clutch housing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and equipment

VW 407 Press tool
30-21 Sleeve
3176 Centering mandrel
T40008 Press piece

1 - Kukko 21/2 Internal puller
1 - Kukko 21/4 Internal puller
4 - Kukko 22/1 Counter support
4 - Kukko 22/2 Counter support

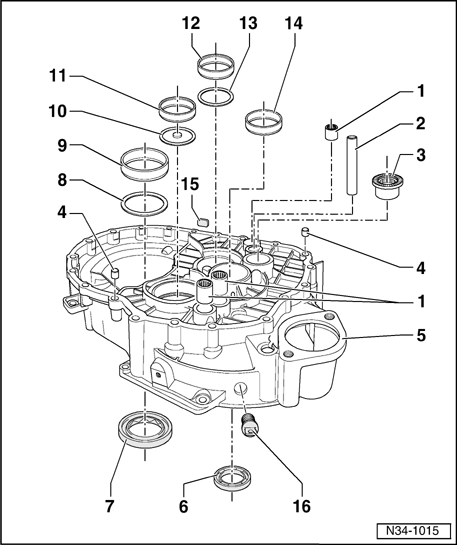

Fig 2: Exploded View Of Clutch Housing Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bushing

For selector rods
Replace each time after removing
Pulling out. See Figure
Driving in. See Figure

2 - Reverse gear selector fork axle

Axle cannot be removed with workshop tools
Pressing axle into clutch housing. See Figure

3 - Needle bearing

Replace each time after removing
Pulling out. See Figure
Pressing in. See Figure

4 - Dowel sleeve

Qty. 2

5 - Clutch housing

If replaced: Refer to Adjustment overview, Adjustment overview

6 - Input shaft oil seal

Removing. See Figure
Installing. See Figure

7 - Oil seal

Replace. Refer to Oil seal for left flanged shaft, replacing

8 - Shim

For differential
Always 0.65 mm thick

9 - Outer race/tapered roller bearing

For differential
Removing and installing. Refer to Differential, disassembling and assembling
If replaced: adjust differential. Refer to Differential, adjusting

10 - Oil deflector ring

Installed position: shoulder on drilling faces output shaft

11 - Outer race/tapered roller bearing

For 1st-4th gear output shaft
Removing and installing. Refer to Figure
If replaced: adjust 1st-4th gear output shaft. Refer to Output shaft for 1st-4th gears, adjusting

12 - Outer race/tapered roller bearing

For 5th, 6th and reverse gear output shaft
Removing and installing. Refer to Output shaft for 5th, 6th and reverse gear, disassembling and assembling
If replaced: adjust 5th, 6th and reverse gear output shaft. Refer to Output shaft for 5th, 6th and reverse gear, adjusting

13 - Shim

For output shaft
Always 0.65 mm thick

14 - Outer race/tapered roller bearing

For input shaft
Removing and installing. Refer to Input shaft, disassembling and assembling
If replaced: adjust input shaft. Refer to Input shaft, adjusting
Transmissions from build date 06 04 0 secured with locking plate and bolt

Bolt 12 Nm
Always replace

15 - Magnet

Held in place by housing joint surface

16 - Protective cap

Installed only in clutch housing of 4-Cyl. engine
