Output Shaft For 1ST-4TH Gears, Adjusting
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 Volkswagen Jetta, 2005 Volkswagen GTI, 2004 Volkswagen Jetta, 2004 Volkswagen GTI, and 2003 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
(Determining shim for output shaft)

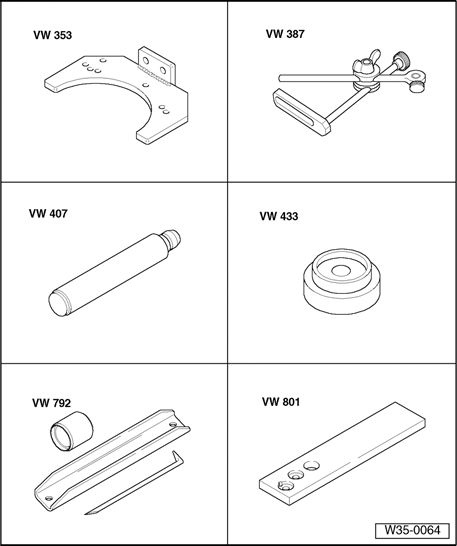

Special tools and equipment
- VW 353 Transmission support
- VW 387 Universal dial gauge bracket
- VW 407 Press tool
- VW 433 Press piece
- VW 792 Installation tool
- VW 801 Holding plate

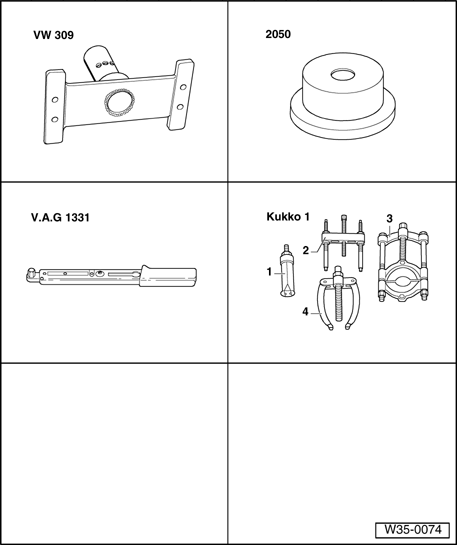

Special tools and equipment
- VW 309 Holding plate
- 2050 Press tool
- VAG 1331 Torque wrench
- 1 - Kukko 21/7 Internal puller
- 4 - Kukko 22/2 Counter support
- Transmission housing
- Clutch housing
- Output shaft for 1st-4th gear
- Tapered roller bearing
It is necessary to readjust the output shaft when the following components are replaced:
or
Adjustment overview. Refer to Adjustment overview
Requirements
- Sealing surfaces of clutch and transmission housings must be free of sealant.
- When taking measurements, install only the shaft to be measured.
- Press tapered roller bearing outer race with a 1.70 mm thick shim into transmission housing, supporting transmission housing directly under bearing support with thrust piece 2050.
- Set complete 1st-4th gear output shaft in clutch housing.

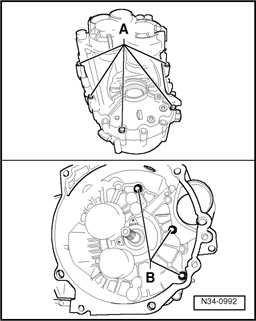

- Install transmission housing and tighten bolts -A- and -B- diagonally to correct torque.
- Install measuring tools and secure with bolt (arrow) to clutch housing.
- Set dial gauge (3 mm measuring range) to zero with 1 mm preload.
- Loosen clutch housing/transmission housing securing bolts diagonally until output shaft is free to move in transmission housing.
- Read play on gauge and note reading (example: 0.14 mm)
NOTE:
If the dial gauge indicates no value when the clutch housing/transmission housing securing bolts are loosened, install shim 1.95 mm (Part No. 084 409 383 AS) or, if necessary, shim 2.20 mm (Part No. 084 409 383 BD).
Determining thickness of shim
The specified bearing pretension will be attained by subtracting the measured value (0.14 mm) from the inserted shim (1.70 mm) and adding a constant for pressing (0.20 mm).
Example:
| Inserted shim | 1.70 mm |
| - Measured value | 0.14 mm |
| + Preloading (constant) | 0.20 mm |
| Shim thickness | 1.76 mm |
- Determine thickness of shim from table. Refer to Shim table .
- Remove transmission housing and pull tapered roller bearing outer race out of transmission housing.
A - Counter support, e.g. Kukko 22/2
B - Internal puller 46 to 58 mm, e.g. Kukko 21/7
- Remove inserted shim from clutch housing.
Shim table
| Size (mm) | Part No. |
| 1.40 1.45 1.50 |
084 409 383 AF 084 409 383 AG 084 409 383 AH |
| 1.55 1.60 1.65 |
084 409 383 AJ 084 409 383 AK 084 409 383 AL |
| 1.70 1.75 1.80 |
084 409 383 AM 084 409 383 AN 084 409 383 AP |
| 1.85 1.90 1.95 2.00 |
084 409 383 AQ 084 409 383 AR 084 409 383 AS 084 409 383 AT |
| 2.05 2.10 2.15 2.20 |
084 409 383 BA 084 409 383 BB 084 409 383 BC 084 409 383 BD |
Varying tolerances make it possible to obtain the exact shim thickness required.
- Press in tapered roller bearing outer race together with determined shim (in example 1.75 mm) while supporting transmission housing with thrust piece 2050 directly under bearing support.
Perform check measurement
- Determined shim installed.
- Install measuring tools and secure with bolt (arrow) to transmission housing.
- Set dial gauge (3 mm measuring range) to zero with 1 mm preload.
- Loosen clutch housing/transmission housing securing bolts diagonally until output shaft is free to move in transmission housing.
If the correct shim has been selected, the dial gauge will indicate a value of 0.15 mm to 0.25 mm.
