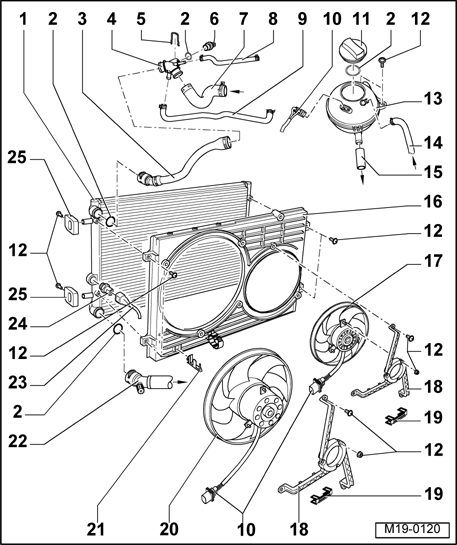

Cooling system components, body side

Engine codes AEG, AVH, AZG, BBW, BEV

1 - Radiator

• Removing and installing. Refer to Radiator, removing and installing
• After replacement replace entire amount of coolant

2 - O-ring

• Always replace

3 - Upper coolant hose

4 - Distributor connection piece

• Secured to radiator with quick release coupling
• Check for secure seating

5 - Clip

• Check for secure seating

6 - A/C Cut-Out Thermal Switch -F163-

• Only applies to models with air conditioning system up to build date 05.99, depending on version.

7 - Coolant hose

• From cylinder head union

8 - Coolant hose

9 - Coolant hose

• To coolant pipe on cylinder block, AEG engine.
• To oil cooler on engines: AVH, AZG, BBW, BEV

10 - Connector

11 - Cover

• Check with coolant system tester V.A.G 1274 and adapter V.A.G 1274/9
• Pressure relief valve must open at a pressure of 1.4 to 1.6 bar

12 - 10 Nm

13 - Expansion tank

• Perform leak test on coolant system with coolant system tester V.A.G 1274 and adapter V.A.G1274/8
• Test pressure 1.4 to 1.6 bar

14 - Coolant hose

• From throttle valve control module

15 - Coolant hose

• To coolant pipe

16 - Air ducting

17 - Right coolant fan -V35-

• Only models with optional equipment
• Checking, Engines: AEG, AVH and AZG. Refer to Radiator coolant fan (vehicles with engine codes AEG, AVH and AZG), checking
• Removing and installing. Refer to Radiator, removing and installing

18 - Fan ring

19 - Retaining clip

• Check seated securely

20 - Coolant fan -V7-

• Checking. Refer to Radiator coolant fan (vehicles with engine codes AEG, AVH and AZG), checking
• Removing and installing. Refer to Radiator, removing and installing

21 - Bracket

• For coolant fan connector

22 - Lower coolant hose

• Secured to radiator by quick release coupling
• Check seated securely

23 - Connector

• For Coolant Fan Control (FC) thermal switch -F18-

24 - Coolant Fan Control (FC) thermal switch -F18-, 35 Nm

• For Coolant fan -V7- and Right coolant fan -V35-
• Switching temperatures:

1st Speed

• on: 92...97 ° C
• off: 84...91 ° C

2nd Speed

• on: 99...105 ° C
• off: 91...98 ° C

25 - Bracket

• For radiator
• Observe installed position
• Different versions
