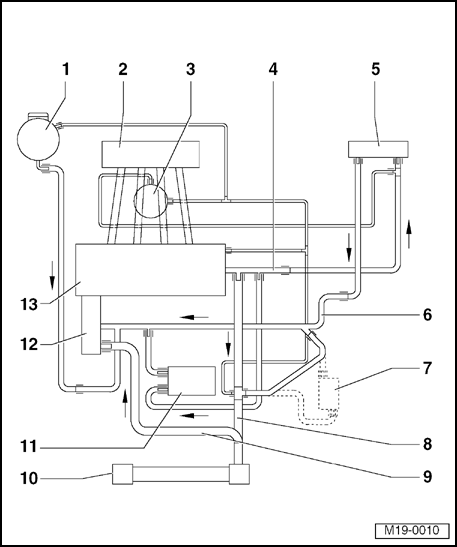

Engine code AEG

1 - Expansion tank

2 - Intake manifold

3 - Throttle valve control module

4 - Union

5 - Heating system heat exchanger

6 - Coolant pipe

7 - ATF cooler

• Only on vehicles with automatic transmission

8 - Upper coolant hose

9 - Lower coolant hose

10 - Radiator

11 - Oil cooler

12 - Coolant pump/coolant thermostat

13 - Cylinder head/cylinder block
