Measuring value block, reading (function 08)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
- Connect VAG 1551 Scan Tool (ST) using adapter harness.
- 1993 m.y. See VAG 1551 Scan Tool (ST), connecting (1993 m.y.)
- Starting 1994 m.y. See VAG 1551 SCAN TOOL (ST), CONNECTING (STARTING 1994 M.Y.)
- Start engine.
- Operate Scan Tool (ST) while observing display.
- Press button -1- for "Rapid data transfer" operating mode.
- Press buttons -0- and -1- to enter address word 01 for "Engine Electronics".
- Press -Q- button to confirm input.
- Press -->button.
- Press buttons -0- and -8- to select the "Read Measuring Value Block" function.
- Press -Q- button to confirm input.

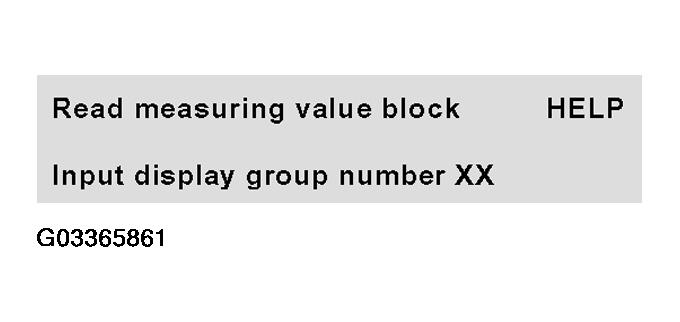

Indicated on display
NOTE:
If anything else appears in the display on. See VAG 1551 SCAN TOOL (ST), SELECTING FUNCTION
detailed description "VAG 1551 Scan Tool, selecting function".
- Select desired display group number. See Display groups, overview . .
Example: Press buttons -0- and -1- to select display group 01.
- Press -Q- button to confirm input.
Indicated on display
NOTE:
With display group numbers 01 to 06, the respective display group number is shown without 0 on the display along with "Read Measuring Value Block". The measurements are displayed in actual values, chart on DISPLAY GROUP NUMBER CHANNEL DESCRIPTION
.
