VAG 1551 Scan Tool (ST), connecting (1993 m.y.)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Battery Positive Voltage (B+) OK
Fuse 22 (S22) OK
Ground (GND) connections on engine and transmission OK (location: below lower part of intake manifold)

Unclip cover for Data Link Connectors (DLC) under heating/ventilation controls.
Connect VAG 1551 Scan Tool (ST) with VAG 1551/1 adapter harness as follows:

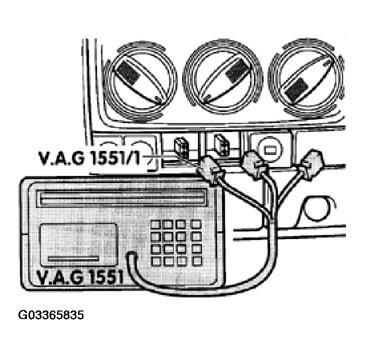

Fig 1: Identifying VAG 1551 Scan Tool With VAG 1551/1 (1993 M.Y.)
First connect black connector from VAG 1551/1 adapter harness to black Data Link Connector (DLC).

Indicated on display:

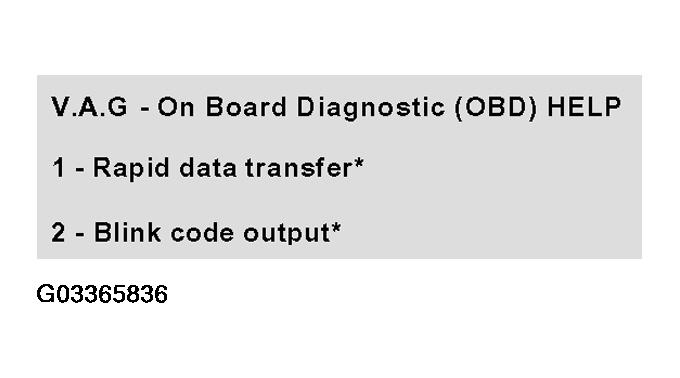

Fig 2: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (1993 M.Y.)

* Operating modes 1 and 2 are displayed alternately.

NOTE: If no display appears, do not connect the white connector. In this case, check the voltage supply for the VAG 1551 Scan Tool (ST). See VOLTAGE SUPPLY FOR VAG 1551 SCAN TOOL (ST), CHECKING (1993 M.Y.) .

Connect white connector from VAG 1551/1 adapter harness to white Data Link Connector (blue connector is not used).
