Display group 60 -Speed regulation- Throttle valve control module adaption

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

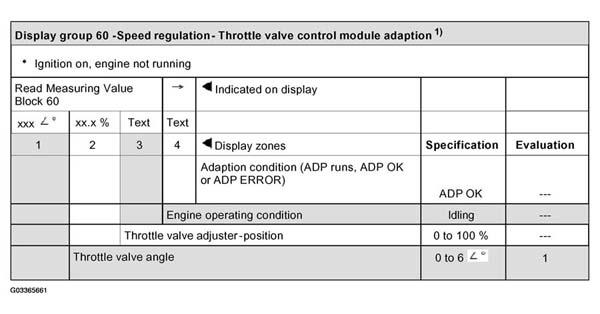

Fig 1: Identifying Display Group 60 - Speed Regulation (Throttle Valve Control Module Adaption)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display Group 60 - Speed Regulation (Throttle Valve Control Module Adaption)

For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 10, DISPLAY ZONE 3 - THROTTLE VALVE ANGLE .

¹⁾ Adapting engine control module to throttle valve control module. See ENGINE CONTROL MODULE (ECM), ADAPTING TO THROTTLE VALVE CONTROL MODULE .

Note on display group 60:

Matching the throttle valve control module is performed with ignition switched on.
Engine control module is adapted to throttle valve control module when selecting display group 60 under function 04 "Basic Setting". This adaption must always be carried out when another throttle valve control module (or another complete engine) or another engine control module is fitted.
