Display group 5 -Basic functions-

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

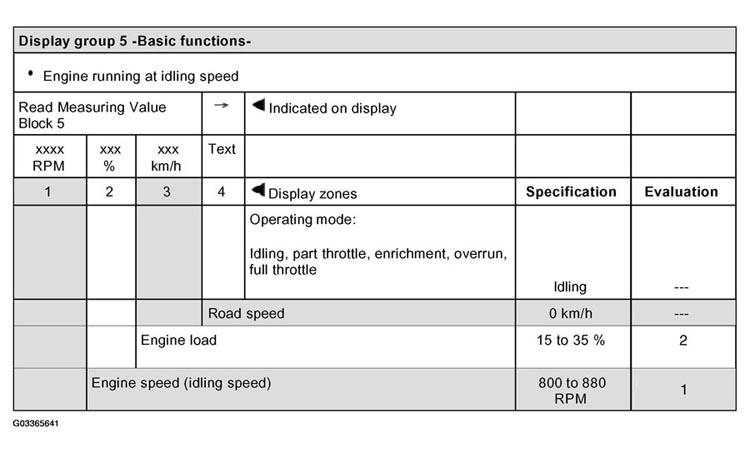

Fig 1: Identifying Display Group 5 - Basic Functions

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display Group 5 - Basic Functions

For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 1, DISPLAY ZONE 1 - ENGINE SPEED (IDLING SPEED) .
For Evaluation 2 in Fig 1, see EVALUATING DISPLAY GROUP 10, DISPLAY ZONE 2 - ENGINE LOAD .
