Display group 3 -Basic function- Mass air flow sensor

WARNING: This page is about a different car, the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, and 2000 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

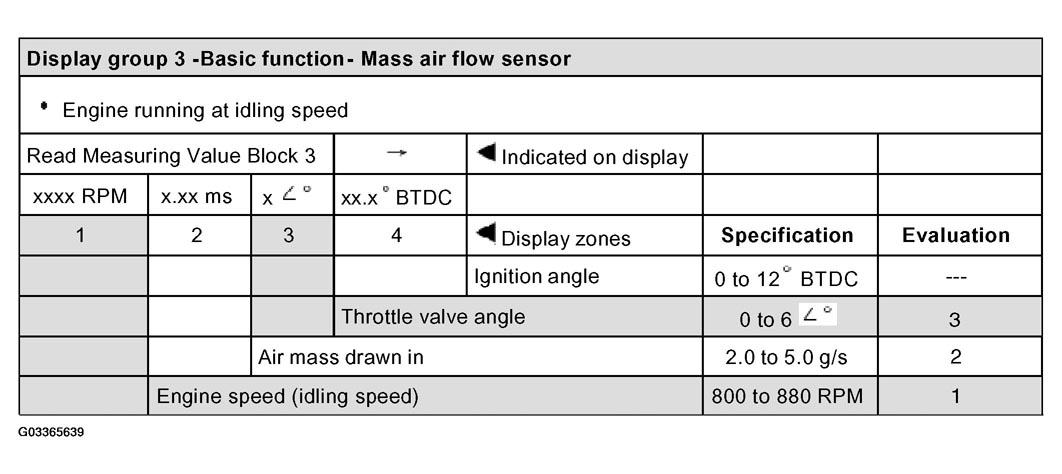

Fig 1: Identifying Display Group 3 Basic Function - Mass Air Flow Sensor

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display Group 3 - Basic Function - Mass Air Flow Sensor

For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 1, DISPLAY ZONE 1 - ENGINE SPEED (IDLING SPEED) .
For Evaluation 2 in Fig 1, see EVALUATING DISPLAY GROUP 2, DISPLAY ZONE 4 - AIR MASS DRAWN IN .
For Evaluation 3 in Fig 1, see EVALUATING DISPLAY GROUP 10, DISPLAY ZONE 3 - THROTTLE VALVE ANGLE .

Note on display zone 3:

With the accelerator pedal floored the display value is approx. 80 to 90 degrees.
