Work sequence

• Connect tester VAS 5051 using diagnostic cable VAS 5051/1 or VAS 5051/3 as follows:
• Remove ashtray and slide cover for Data Link Connector (DLC) to left -arrow-.
• Connect diagnostic cable connector on to DLC.

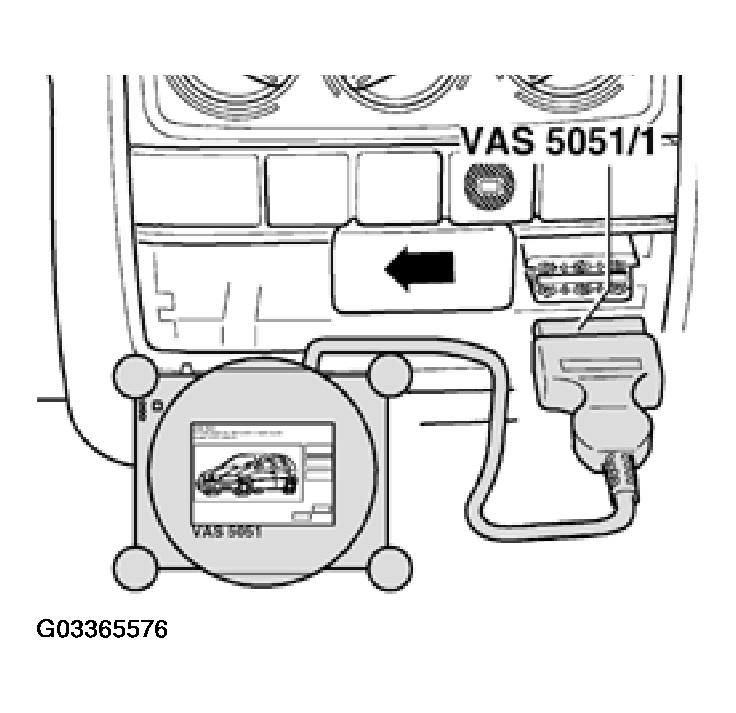

  Fig 1: Connecting Diagnostic Cable Connector To DLC

  Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Depending upon desired function:

  Switch ignition on

  or

  Start engine. See FUNCTIONS WHICH CAN BE SELECTED WHEN USING THE SCAN TOOLS VAG 1551/1552 OR VAS 5051 , Table "Selectable functions".

Indicated on display:

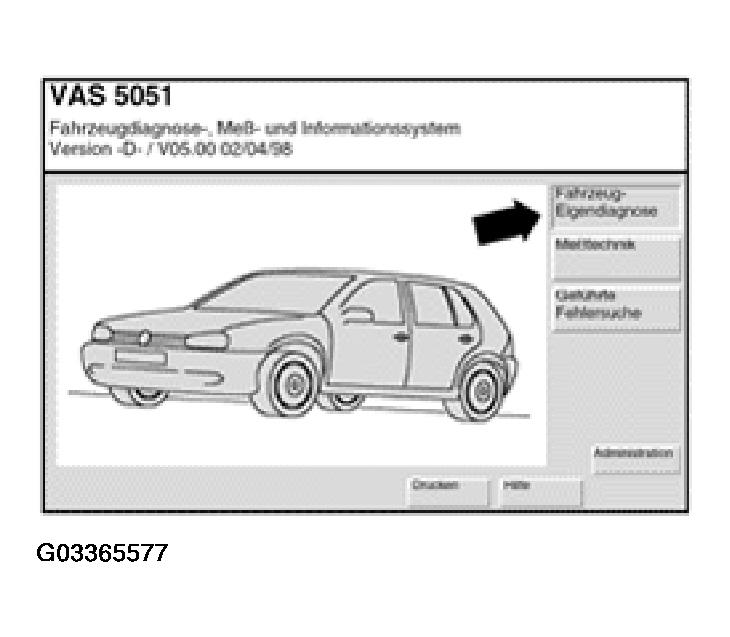

Fig 2: VAS 5051 Display - Select Operating Mode

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Select operating mode:

• Press button on display for "Vehicle On Board Diagnostic" -arrow-.

Indicated on display:

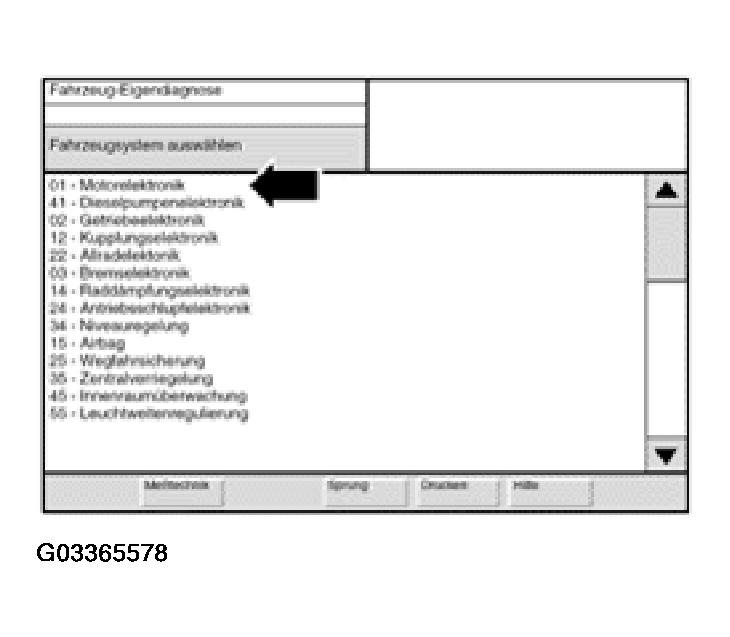

Fig 3: VAS 5051 Display - Select Vehicle System

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Select vehicle system:

• Press keys "01 - Engine Electronics" on display -arrow-.

On the display the control module identification and coding are displayed. For example, see Fig 4.

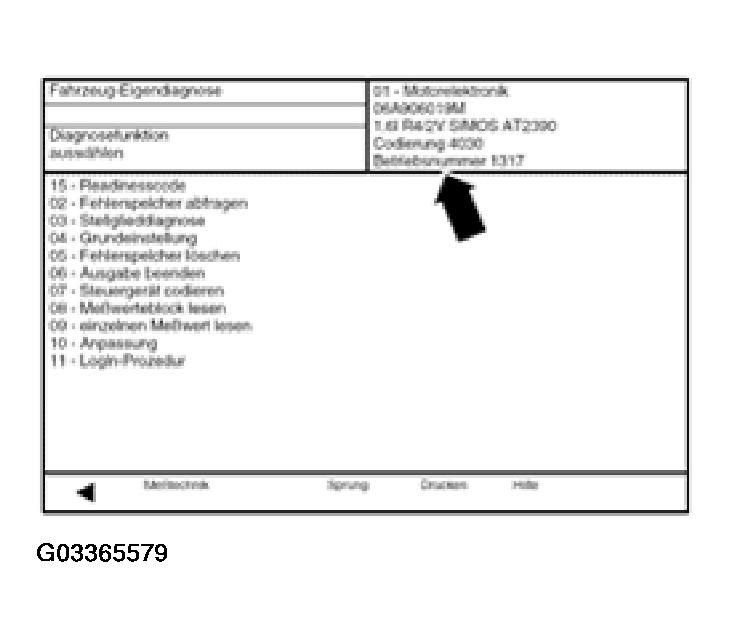

Fig 4: VAS 5051 Display - Control Module Identification And Coding

Courtesy of VOLKSWAGEN OF AMERICA, INC.

If the coding differs from the vehicle version, then:

• Checking control module coding. See ENGINE CONTROL MODULE (ECM), CODING (SCAN TOOL FUNCTION 07)

Indicated on display:

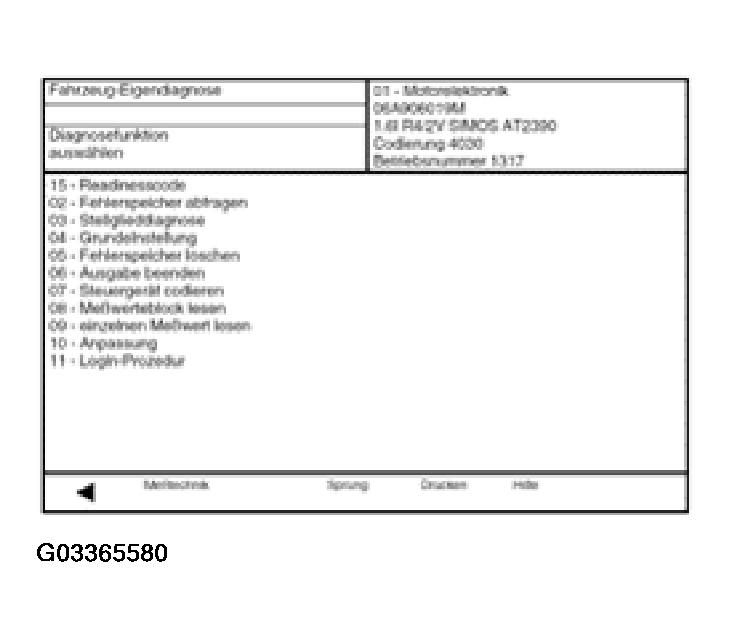

Fig 5: VAS 5051 Display - Select Diagnostic Function

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Select diagnostic function:

At this point all diagnostic functions are available.

• Press desired function on display.
• Further measures see repair procedures.
