Differential, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If tapered roller bearings are to be re-used, mark the adjusting ring. See Marking adjusting ring .
- The drive pinion does not need to be removed for removing and installing the differential.
NOTE:

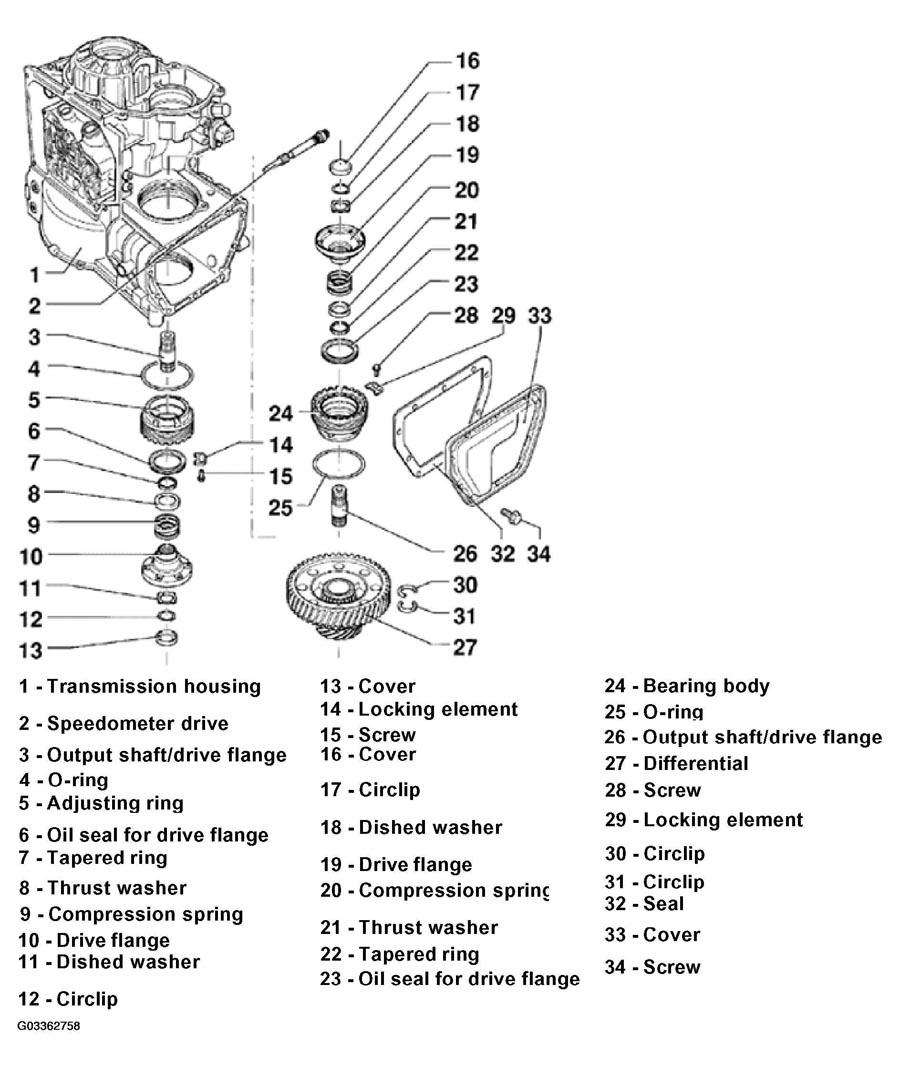

The following list refers to items in Fig 1.
- - Transmission housing
- - Speedometer drive
- With marking for oil level indication. See Speedometer drive .
- - Output shaft/drive flange
- Install thread facing drive flange
- Remove before taking out differential
- First adjust differential before installing
- - O-ring
- Always replace
- - Adjusting ring
- Removing. See Removing adjusting ring .
- If used bearings are reinstalled, mark installation position and line up on marking again when installing. See Marking adjusting ring .
- If new bearings are installed, pay attention to setting instructions. See DIFFERENTIAL, ADJUSTING .
- - Oil seal for drive flange
- Before installing, pack space between sealing lips with multi-purpose grease
- Can be replaced with transmission installed. See Drive flange oil seal, removing and installing .
- Remove with VW 681
- Driving in. See Driving in drive flange oil seal up to stop .
- - Tapered ring
- Shoulder faces thrust washer
- - Thrust washer
- Place over compression spring
- - Compression spring
- - Drive flange
- Install with tapered ring, thrust washer and compression spring
- Remove before taking out inner circlip on bevel gear
- Removing and installing. See Removing and installing drive flange .
- - Dished washer
- - Circlip
- - Cover
- - Locking element
- - Screw
- Tightening torque: 12 N.m (9 ft lb)
- - Cover
- - Circlip
- - Dished washer
- - Drive flange
- Install with tapered ring, thrust washer and compression spring
- Remove before taking out inner circlip on bevel gear
- Removing and installing. See Removing and installing drive flange .
- - Compression spring
- - Thrust washer
- Place over compression spring
- - Tapered ring
- Shoulder faces thrust washer
- - Oil seal for drive flange
- Before installing, pack space between sealing lips with multi-purpose grease
- Can be replaced with transmission installed. See Drive flange oil seal, removing and installing .
- Remove with VW 681
- Driving in. See Driving in drive flange oil seal up to stop .
- - Bearing body
- Tightening torque: 150 N.m (111 ft lb)
- When installing new bearing, pay attention to setting instructions. See DIFFERENTIAL, ADJUSTING .
- Remove with tool 3155
- Installing. See Installing differential .
- - O-ring
- Always replace
- - Output shaft/drive flange
- Install thread facing drive flange
- Before removing, take out differential
- First adjust differential before installing
- - Differential
- Disassembling and assembling. See DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING .
- Before removing differential, take out bearing body, adjusting ring and output shafts.
- - Screw
- Tightening torque: 12 N.m (9 ft lb)
- - Locking element
- - Circlip
- First remove drive flange before removing circlip
- Removing and installing. See Installing circlip .
- - Circlip
- First remove drive flange before removing circlip.
- Removing and installing. See Installing circlip .
- - Seal
- Always replace
- - Cover
- For differential
- - Screw
- Tightening torque: 28 N.m (21 ft lb)
- Install with thread locking fluid AMV 185 101 A1
NOTE: After adjusting tapered roller bearings, secure bearing body and adjusting ring.
