Removing and installing drive flange

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Drive flange can also be removed with VW 391.

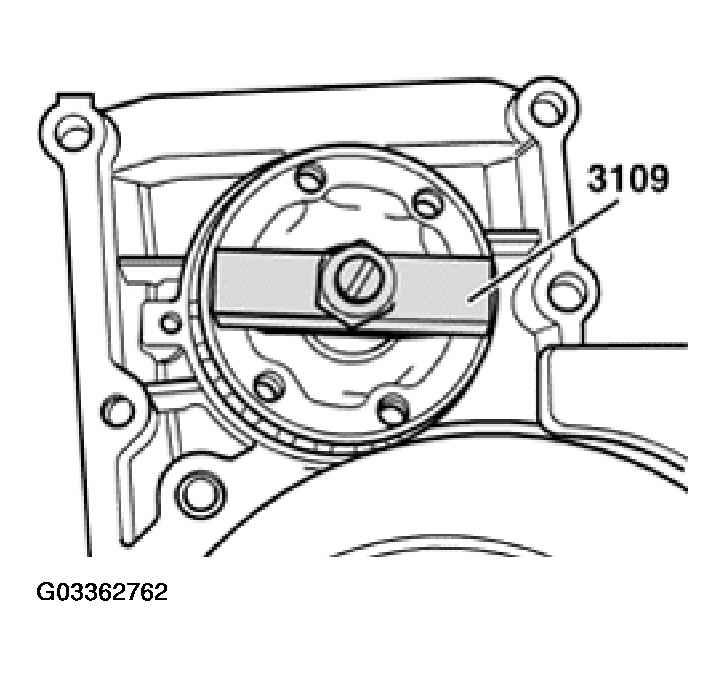

Fig 1: Removing And Installing Drive Flange
G03362762Courtesy of VOLKSWAGEN OF AMERICA, INC.
