Free wheel with -B1- piston, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

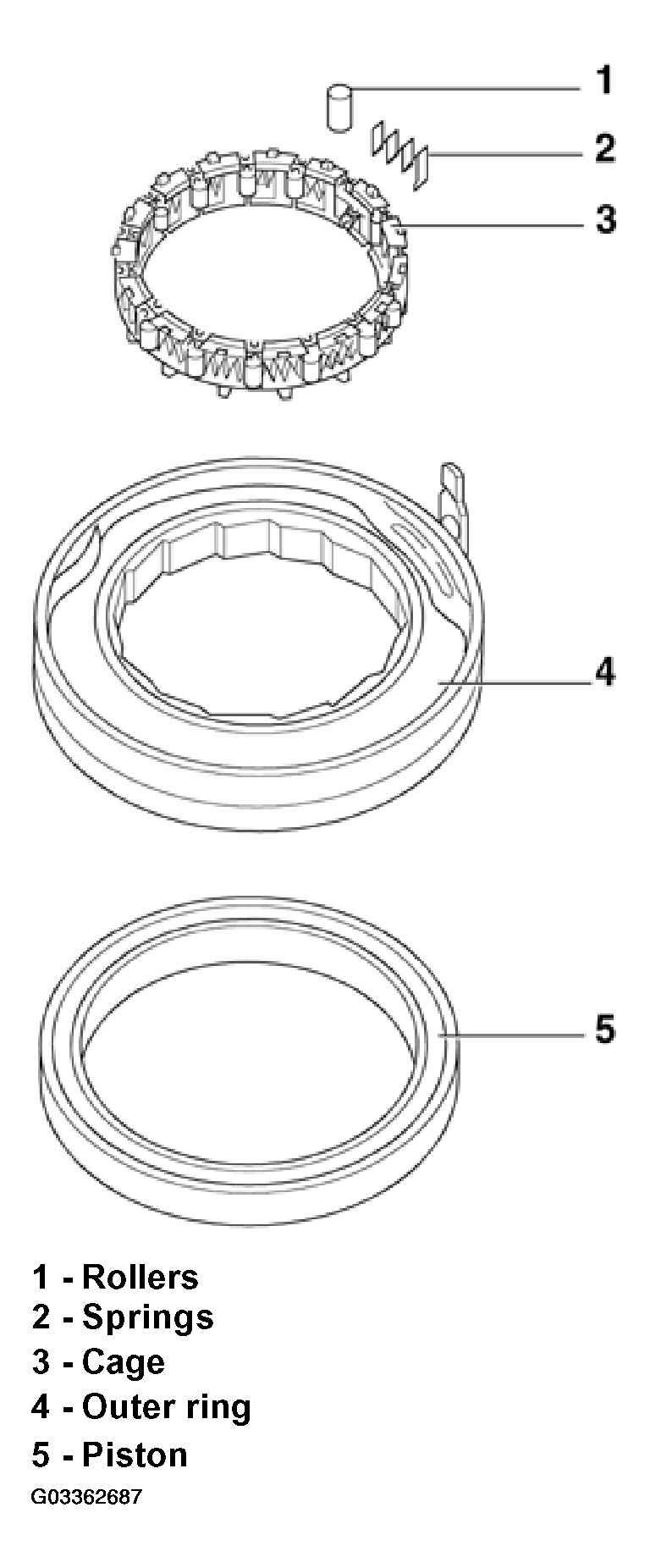

The following list refers to Fig 1.
- - Rollers
- Installing. See Installing rollers and springs .
- - Springs
- Installing. See Installing rollers and springs .
- - Cage
- Installing. See Installing cage with springs and rollers .
- Securing. See Securing cage .
- - Outer ring
- - Piston
- Sealing lips are vulcanized to piston
- Moisten sealing lips with ATF before installing
- Turn piston slightly while installing
- Installed position. See Installed position of piston .
