Installing rollers and springs (Free Wheel With -B1- Piston)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Install springs so that spring (arrow) engages in cage.

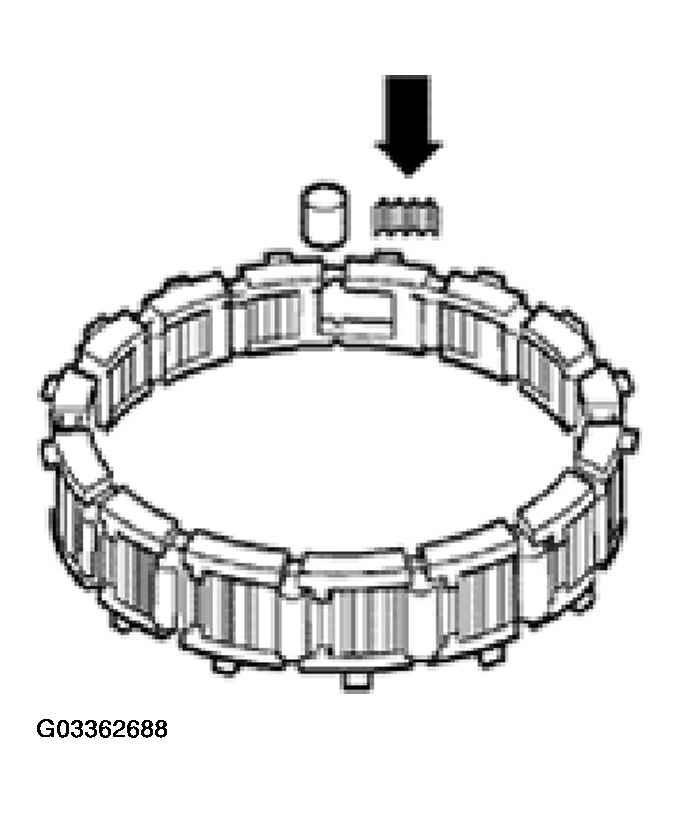

Fig 1: Installing Rollers And Springs (Free Wheel With -B1- Piston)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
