Determining shim -A- thickness

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Shim thickness is determined by gap -x- and shim is selected from table. See TABLE OF SHIMS .

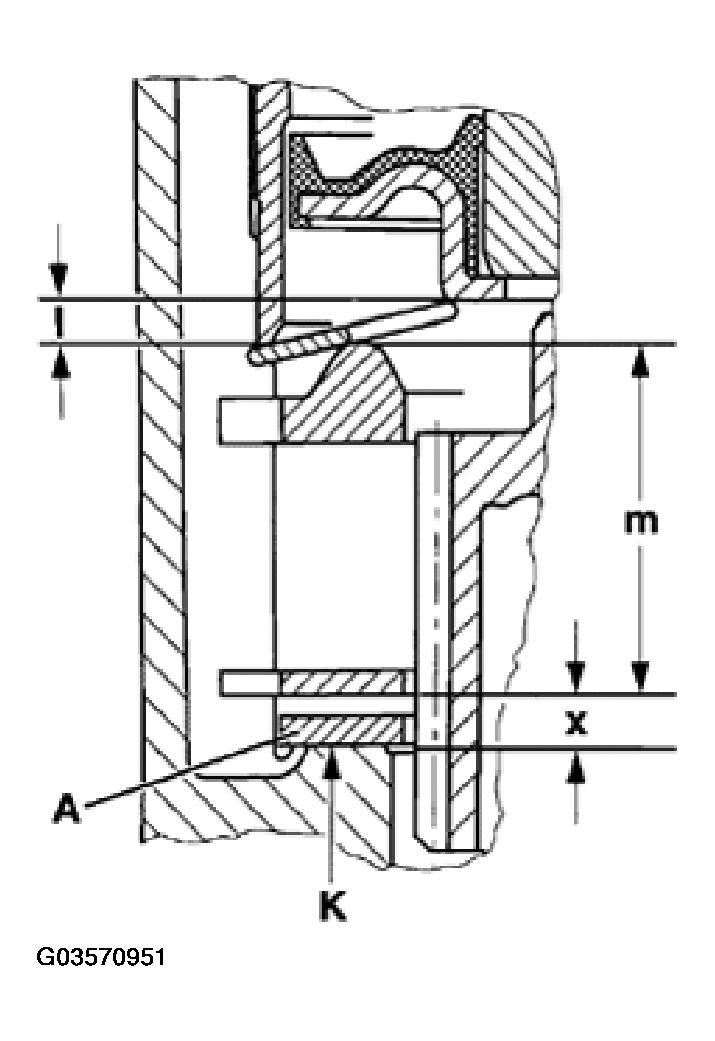

Fig 1: Measuring Shim -A- Thickness (Planet Carrier)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Fig 2: Calculating Gap (Planet Carrier)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Constant is determined by installation height in transmission housing and is not adjustable.
