Planetary gearbox, disassembling and assembling: Disassembling

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Seal ATF cooler connections.
Drain ATF.
ATF can be removed using VAG 1358A extraction system with VAG 1358A/1 probe, or EZ1 fluid evacuator.
Remove torque converter.

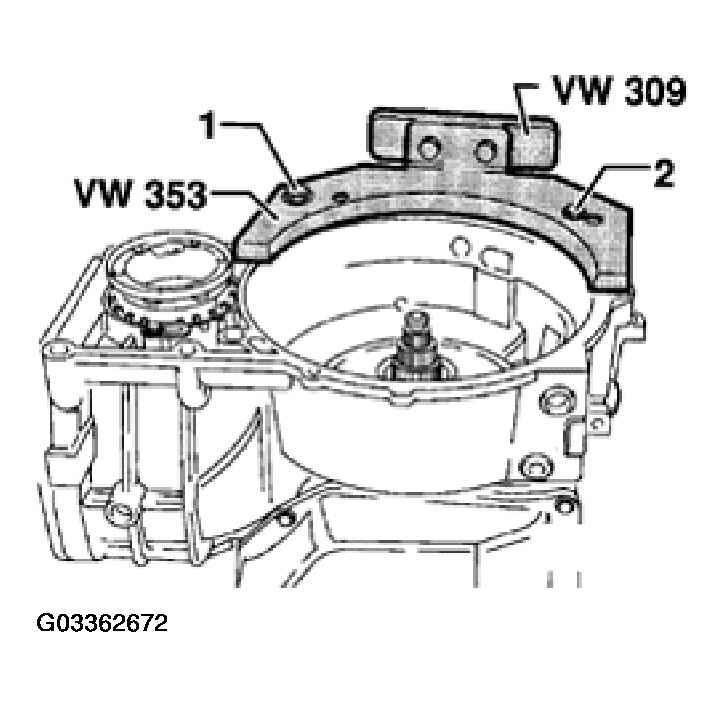

Secure transmission to assembly support with bolts -1- and -2-.

Fig 1: Securing Transmission To Assembly Support With Bolts

G03362672

Courtesy of VOLKSWAGEN OF AMERICA, INC.

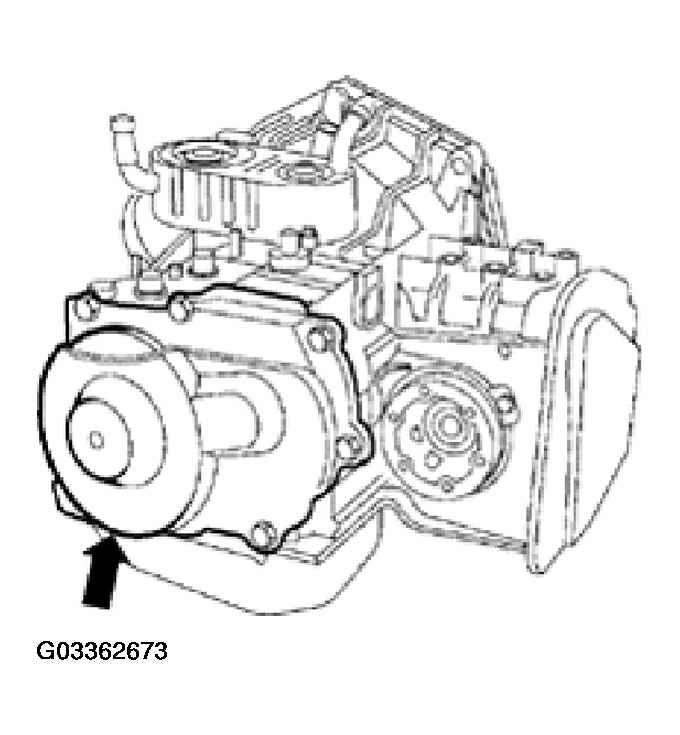

Remove transmission housing cover with gasket (arrow).

Fig 2: Removing Transmission Housing Cover

G03362673

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove sump.
Remove ATF screen.

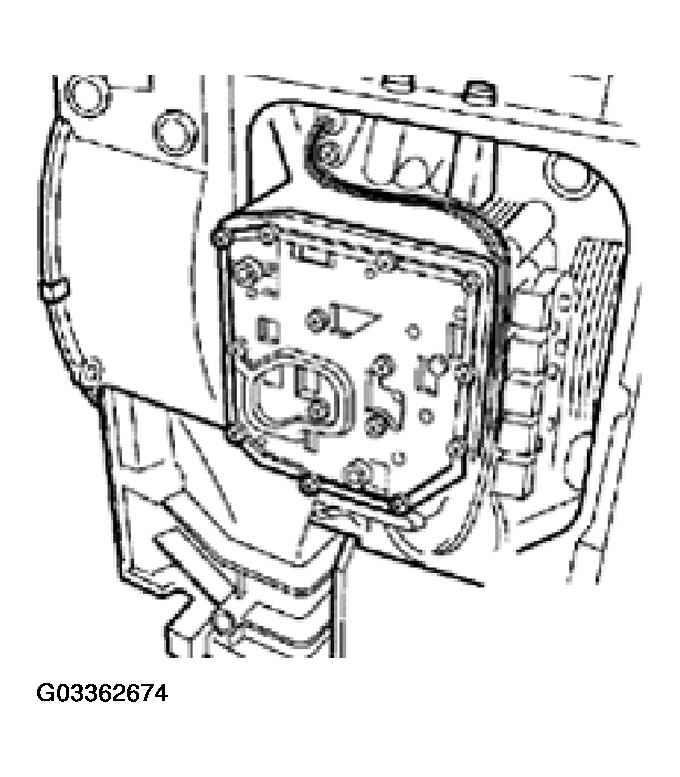

Remove valve body.
See VALVE BODY, REMOVING AND INSTALLING .

Fig 3: Removing Valve Body

G03362674

Courtesy of VOLKSWAGEN OF AMERICA, INC.

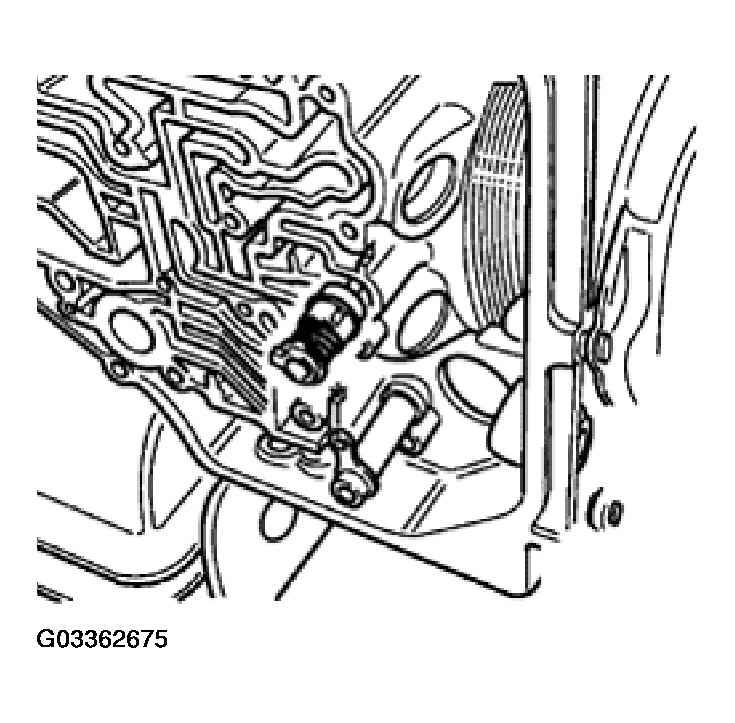

Remove sealing plugs for -B1-.

Fig 4: Removing Sealing Plugs

G03362675

Courtesy of VOLKSWAGEN OF AMERICA, INC.

To remove ATF pump:

Remove ATF pump bolts.

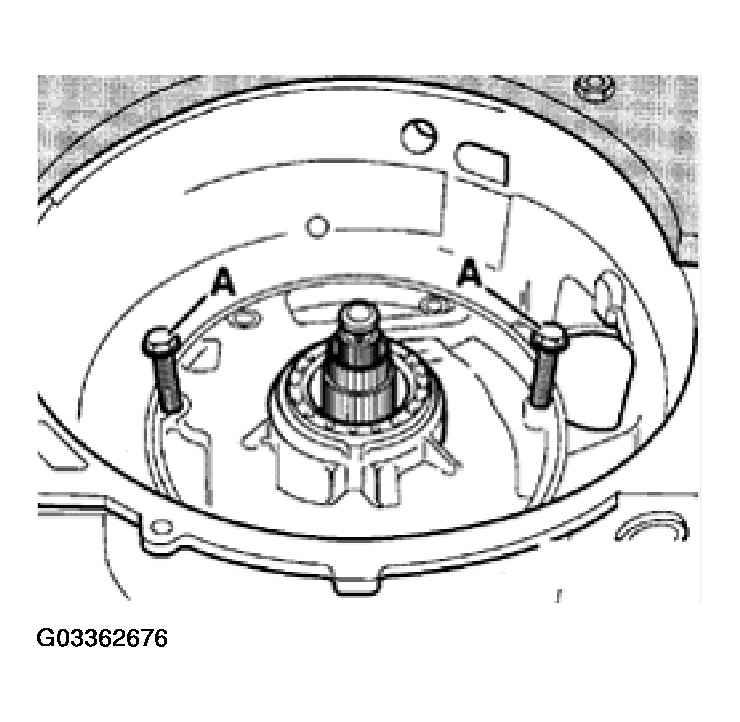

Screw bolts -A- (M8) into tapped holes in ATF pump.

Fig 5: Screwing Bolts Into Tapped Holes In ATF Pump

G03362676

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press ATF pump off transmission by turning bolts -A-evenly.

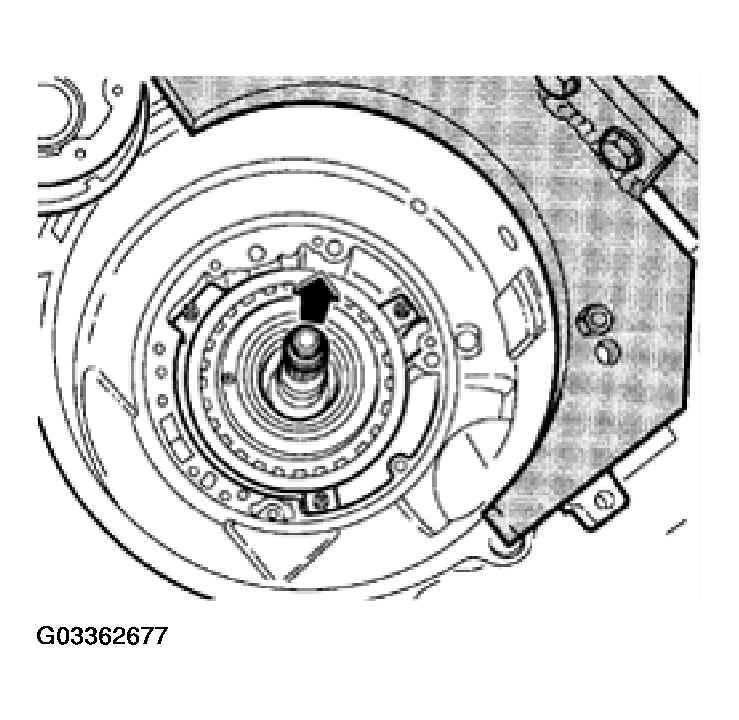

Take out all clutches with supporting tube, -B2- plates, springs and spring caps together.

Fig 6: Removing Clutches With Supporting Tube, Plates, Springs & Spring Caps

G03362677

Courtesy of VOLKSWAGEN OF AMERICA, INC.

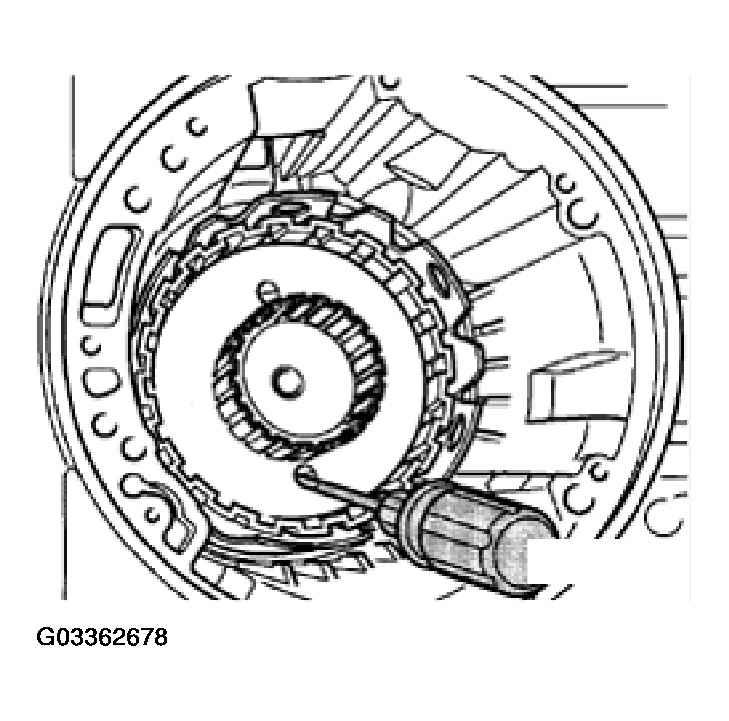

Insert screwdriver through hole of large drive shaft and large sun gear to loosen and tighten bolt for small drive shaft.

Fig 7: Inserting Screwdriver Through Hole Of Large Drive Shaft

G03362678

Courtesy of VOLKSWAGEN OF AMERICA, INC.

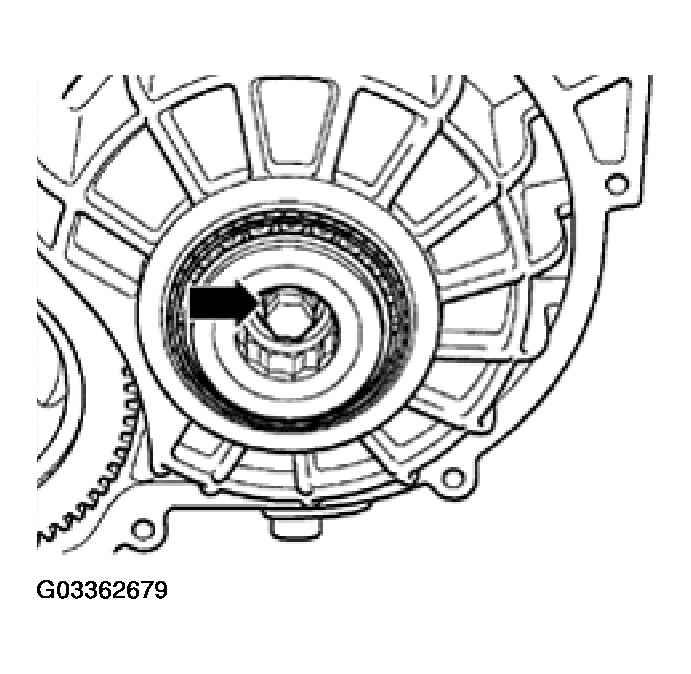

Loosen small drive shaft bolt (arrow).

Fig 8: Loosening Small Drive Shaft Bolt

G03362679

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove small drive shaft bolt, washer and shim.
- Planet carrier axial needle bearing remains in transmission/input gear
Pull out small drive shaft.

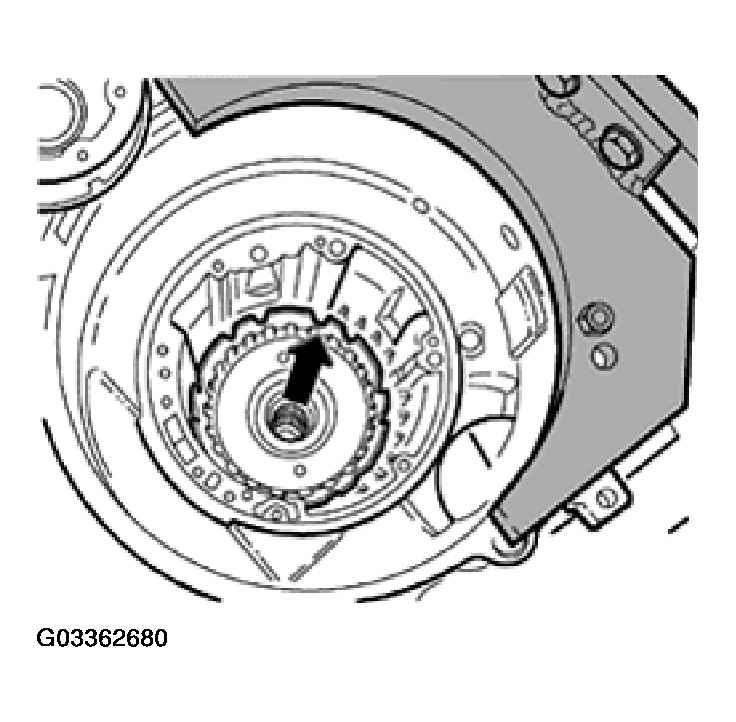

Pull out large drive shaft (arrow).

Fig 9: Removing Large Drive Shaft

G03362680

Courtesy of VOLKSWAGEN OF AMERICA, INC.

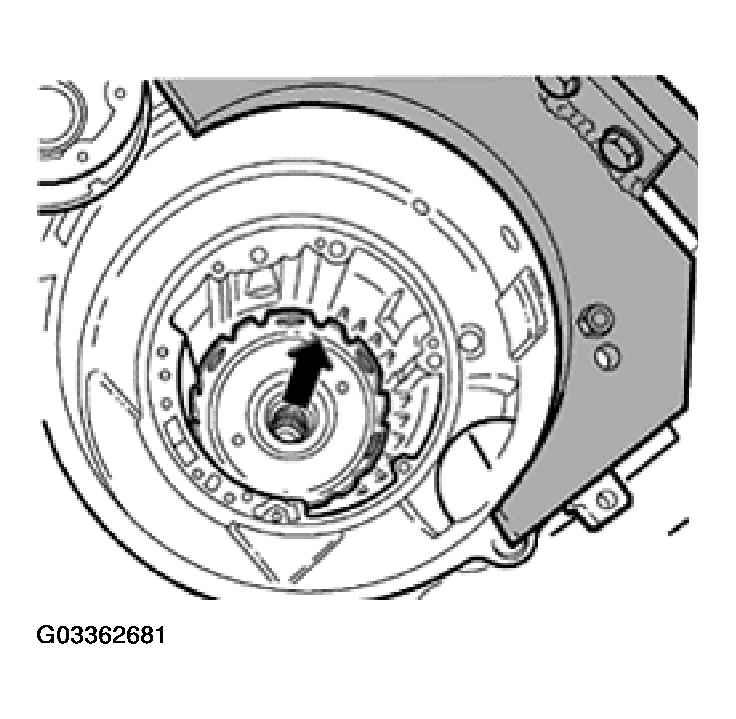

Pull out large sun gear (arrow).

Fig 10: Removing Large Sun Gear

G03362681

Courtesy of VOLKSWAGEN OF AMERICA, INC.

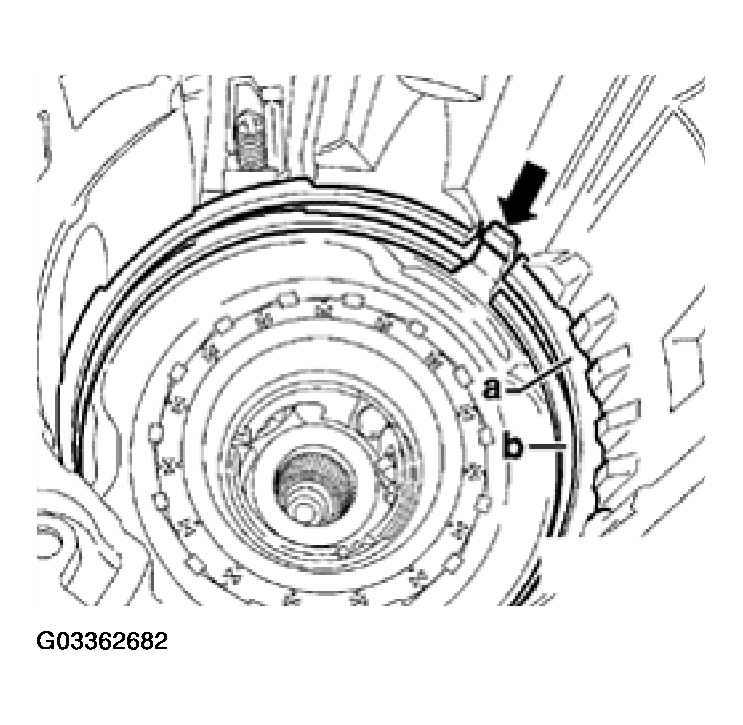

Remove supporting tube circlip -a- and free wheel circlip -b-.

Fig 11: Removing Supporting Tube Circlip And Free Wheel Circlip

G03362682

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove free wheel from transmission housing by pulling on free wheel retaining wedge (arrow) with pliers.

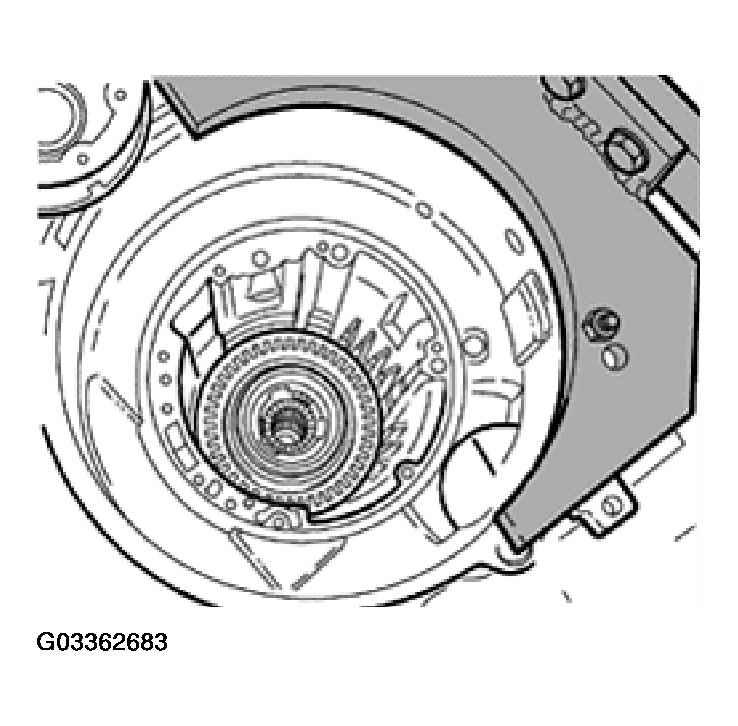

Pull out planet carrier with dished spring.

Fig 12: Removing Planet Carrier With Dished Spring

G03362683

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove reverse gear brake -B1- plates.

NOTE:

It is not necessary to remove input gear to disassemble the planetary gearbox. Removing and installing input gear. See INPUT GEAR, REMOVING AND INSTALLING .
Assembling planetary gearbox. See Planetary gearbox, assembling .
