Determining shim -A- thickness

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Install all components to adjust planet carrier in transmission housing.
See PLANET CARRIER, ADJUSTING , items - 2 - through - 16 -.

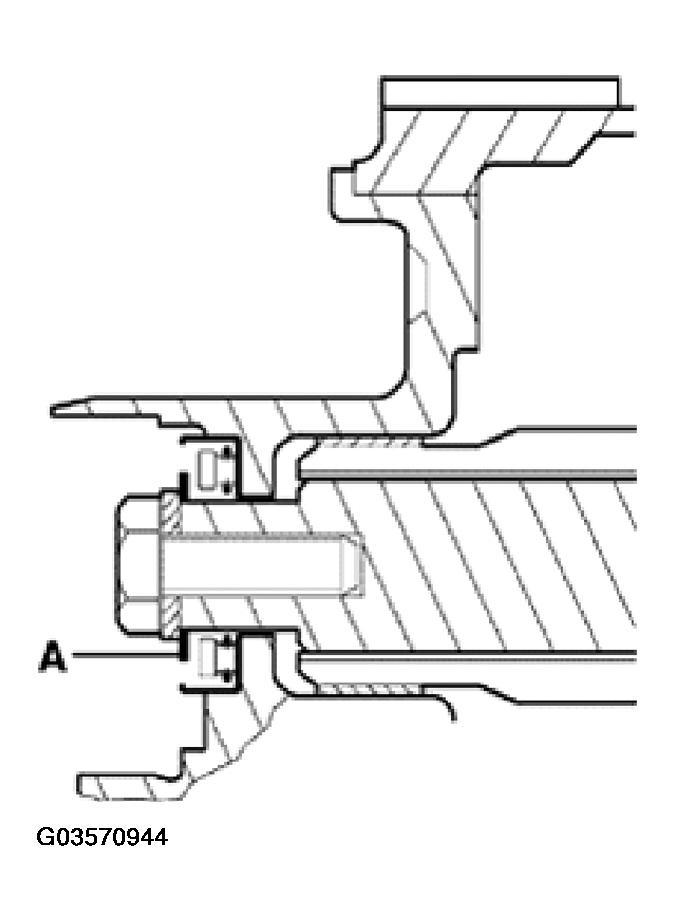

Fig 1: Inspecting Shim -A- Thickness

Courtesy of VOLKSWAGEN OF AMERICA, INC.

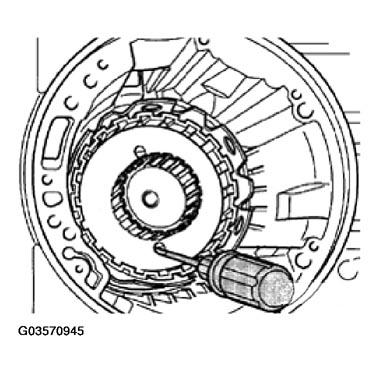

Insert screwdriver through hole of large drive shaft and large sun gear to loosen and tighten bolt for small drive shaft.

Fig 2: Inserting Screwdriver Through Hole Of Large Drive Shaft And Large Sun Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

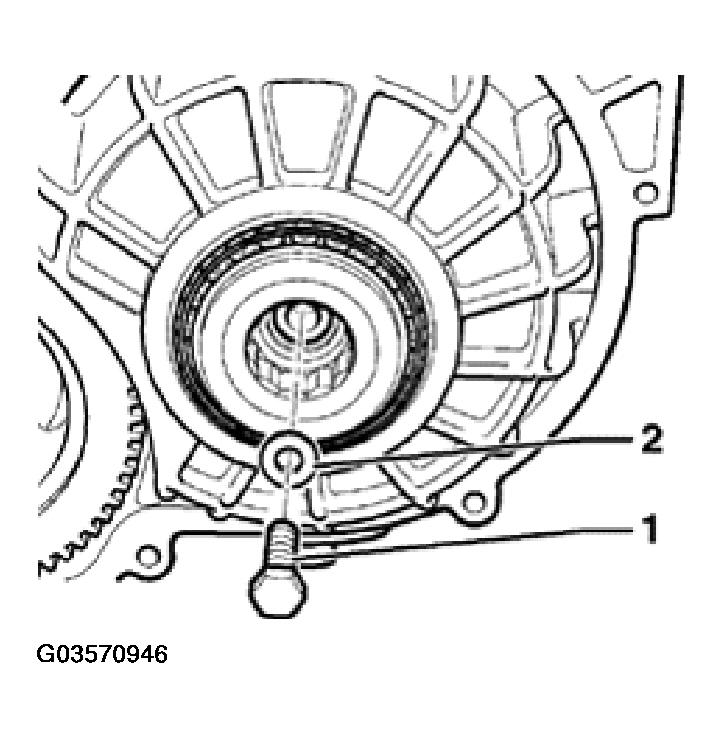

Install small input shaft bolt -1- with washer -2-, but without shim.
- Tightening torque: 30 Nm (22 ft lb)

Fig 3: Installing Small Input Shaft Bolt With Washer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

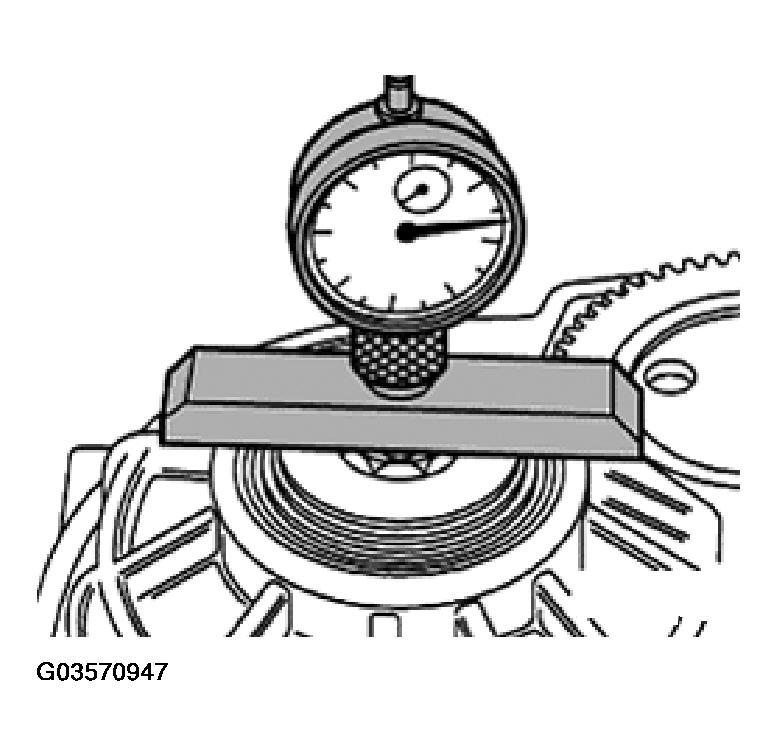

Set up dial indicator so that top of gauge is positioned on center of bolt head with 1 mm preload.

Fig 4: Setting Up Dial Indicator

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Zero dial gauge.
Move small input shaft up and take measurement.
- Example: measurement = 2.00 mm
Specify thickness of shim according to Table Of Shims (Planet carrier, adjusting) table and determine Part No. from parts catalog microfiche.

Table Of Shims (Planet carrier, adjusting)

Dial indicator measurement - mm	Shim thickness - mm
1.26 - 1.35	1.0
1.36 - 1.45	1.1
1.46 - 1.55	1.2
1.56 - 1.65	1.3
1.66 - 1.75	1.4
1.76 - 1.85	1.5
1.86 - 1.95	1.6
1.96 - 2.05	1.7
2.06 - 2.15	1.8
2.16 - 2.25	1.9
2.26 - 2.35	2.0
2.36 - 2.45	2.1
2.46 - 2.55	2.2
2.56 - 2.65	2.3
2.66 - 2.75	2.4
2.76 - 2.85	2.5
2.86 - 2.95	2.6
2.96 - 3.05	2.7
3.06 - 3.15	2.8
3.16 - 3.25	2.9

Example:

Measurement = 2.00 mm:

Insert 1.7 mm shim.
Remove small input shaft bolt.

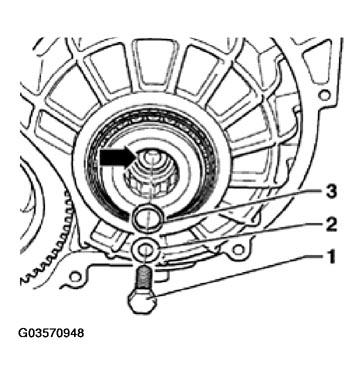

Install correct shim -3- on small input shaft (arrow).
Tighten small input shaft bolt -1- with washer -2-.
- Tightening torque: 30 Nm (22 ft lb)

Fig 5: Installing Small Input Shaft Bolt With Washer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Carry out planet carrier check measurement.
See PLANET CARRIER CHECK MEASUREMENT .
