Clutch play between -K1- and -K2-, adjusting: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

To adjust clutch play install components without shim - 8 -. See PLANETARY GEARBOX, ASSEMBLING .

NOTE: The following list refers to Fig 1.

- Transmission housing
- Axial needle bearing with washer
- Axial needle bearing faces towards small input shaft
- Washer faces toward -K3-
- 3rd and 4th gear clutch -K3- with pump shaft
- On transmissions from 01.93 the -K3- clutch operates only 4th gear. See TRANSMISSIONS FOR VEHICLES WITH ELECTRONIC PROGRAM SWITCH IN TRANSMISSION CONTROL MODULE (TCM) .
- Axial needle bearing washer
- Lugs face toward axial needle bearing
- Axial needle bearing
- Axial needle bearing washer
- 1st to 3rd gear clutch - K1- with turbine shaft
- Shim
- Do not install when adjusting clutch play
- 1 or 2 shims may be installed to achieve correct thickness
- Reverse gear clutch -K2-

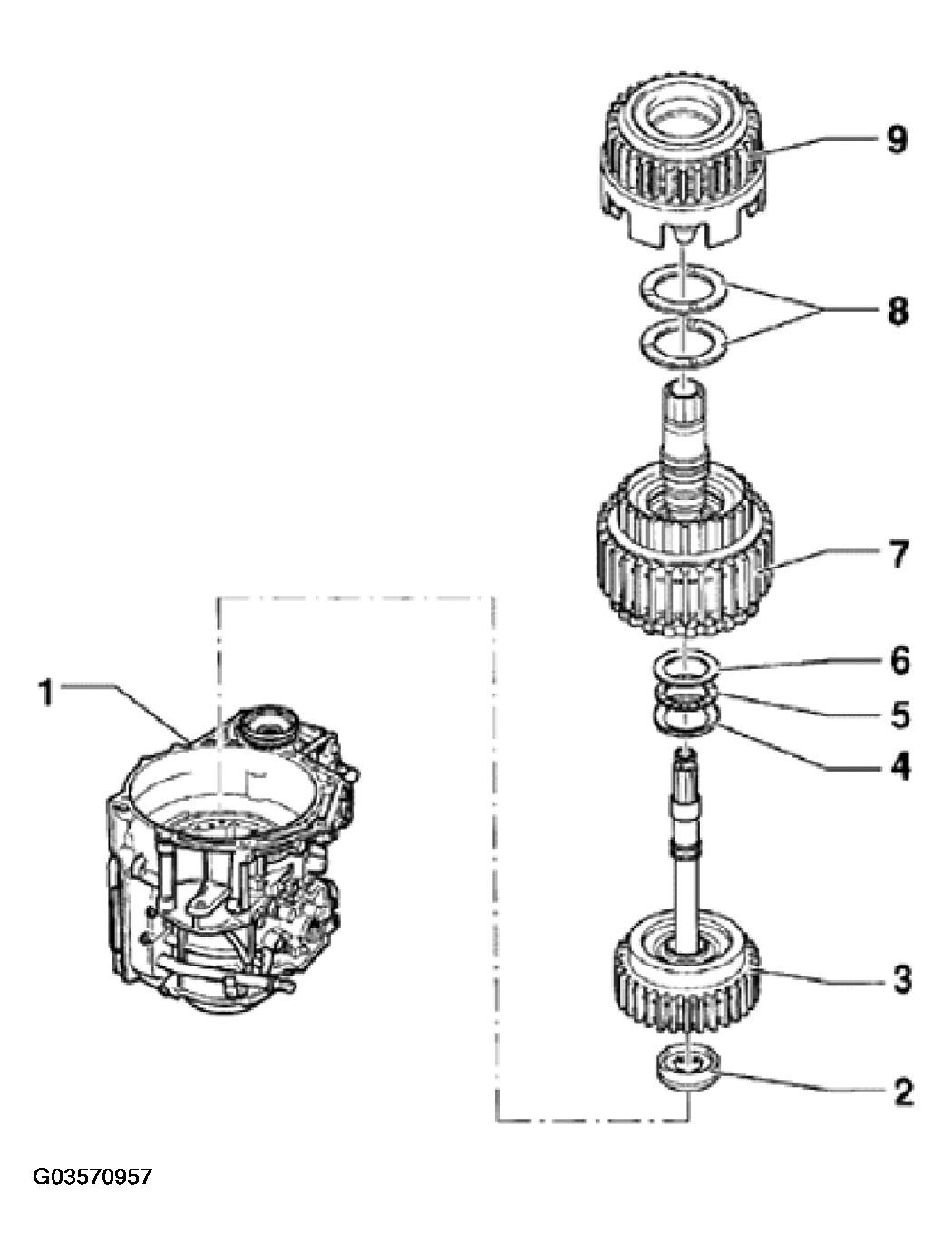

Fig 1: Adjusting Clutch Play Components

Courtesy of VOLKSWAGEN OF AMERICA, INC.
