2nd and 4th gear brake - B2-, adjusting: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
- Install components to adjust 2nd and 4th gear brake -B2- but without corrugated washer - 11 - and last outer plate - 10 -. See PLANETARY GEARBOX, ASSEMBLING .
NOTE:

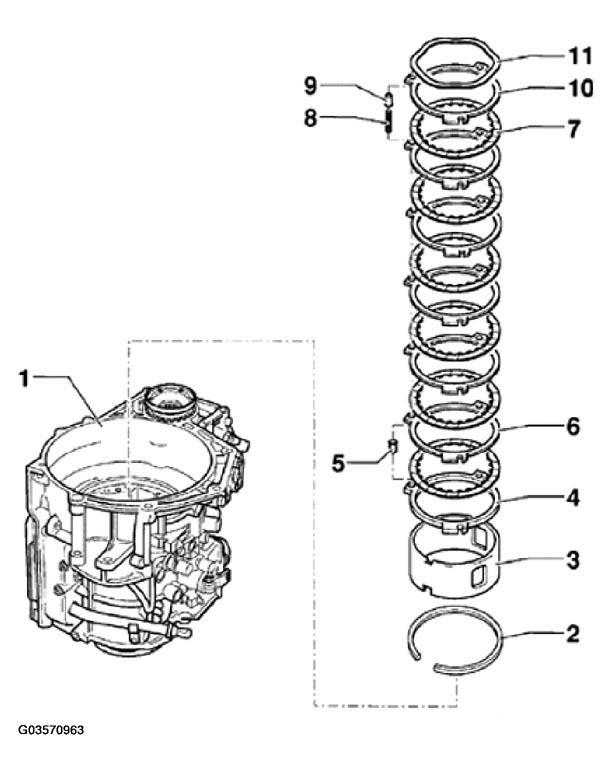

The following list refers to Fig 1.
- - Transmission housing
- - Circlip
- For supporting tube
- - Supporting tube -B2-
- Length of -B2-:
- 4 inner plates 72.3 mm (2.847 in.)
- 5 inner plates 68.6 mm (2.701 in.)
- 6 inner plates 64.9 mm (2.555 in.)
- Quantity inner plates -B2-. See CODE LETTERS, MODEL/ENGINE APPLICATIONS, RATIOS, EQUIPMENT .
- Insert so that notch locates on free wheel wedge
- - Outer plate -B2-
- 3 mm thick
- - Spring cap
- Install after installing first outer plate
- - Outer plate -B2-
- Always install 2 mm thick outer plates
- Quantity. See CODE LETTERS, MODEL/ENGINE APPLICATIONS, RATIOS, EQUIPMENT .
- - Inner plate -B2-
- Quantity. See CODE LETTERS, MODEL/ENGINE APPLICATIONS, RATIOS, EQUIPMENT .
- - Spring
- - Spring cap
- Install before installing last outer plate
- - Outer plate -B2-
- Do not install when adjusting -B2-
- 2 outer plates can be installed.
- - Corrugated washer
- Do not install when adjusting -B2-
