Locking cable, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Ensure proper routing of locking cable when installing.

Install locking cable in vehicle.

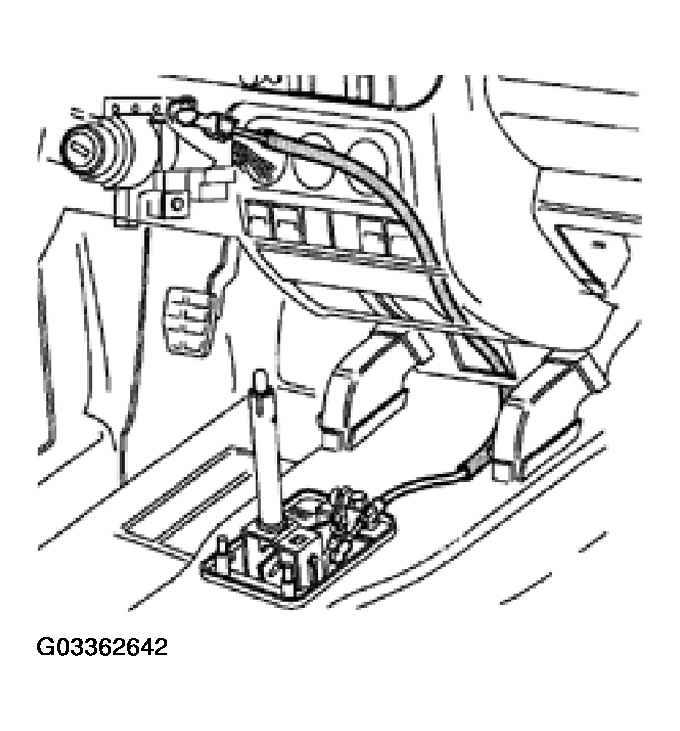

Fig 1: Installing Locking Cable

G03362642

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Mount locking cable eye -1- on locking lever -a-.

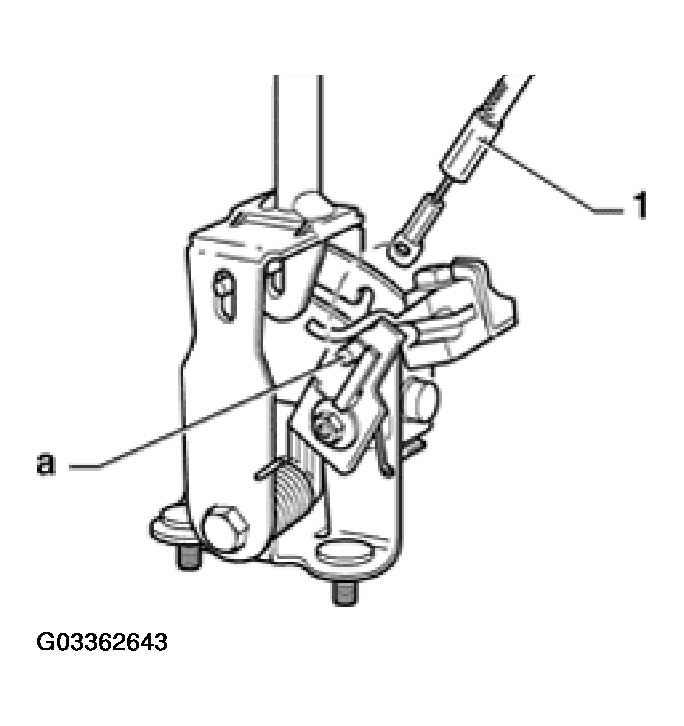

Fig 2: Mounting Locking Cable Eye On Locking Lever

G03362643

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install locking cable in cable anchorage.
Do not tighten screw -a- until after adjusting locking cable.

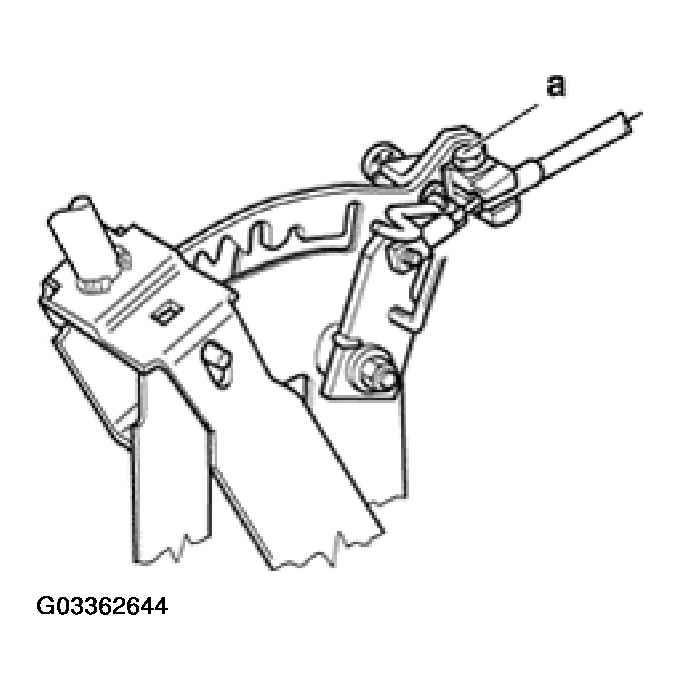

Fig 3: Installing Locking Cable In Cable Anchorage

G03362644

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Mount locking cable clip on locking cable first.
Press locking cable onto ball head.
Press locking cable with clip into support bracket for Ignition/Starter Switch.

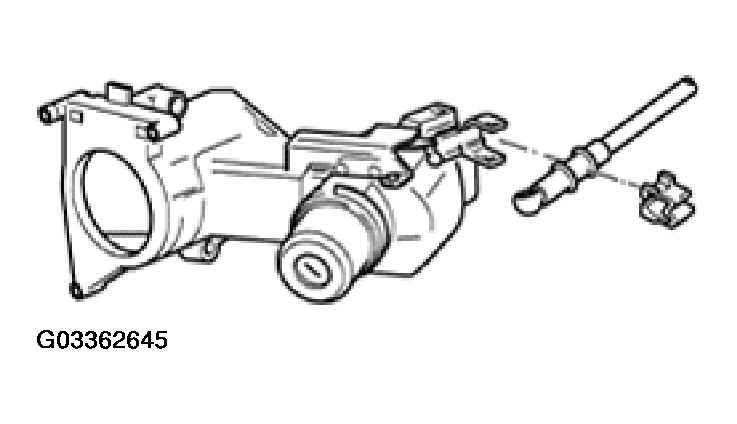

Fig 4: Mounting Locking Cable Clip On Locking Cable

G03362645

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Route locking cable along steering column,
Adjust locking cable on cable anchorage of selector lever. See LOCKING CABLE, ADJUSTING .
Install center console.
Install cover with indicator and selector lever handle.
Attach trim for Ignition/Starter Switch, and install steering wheel.

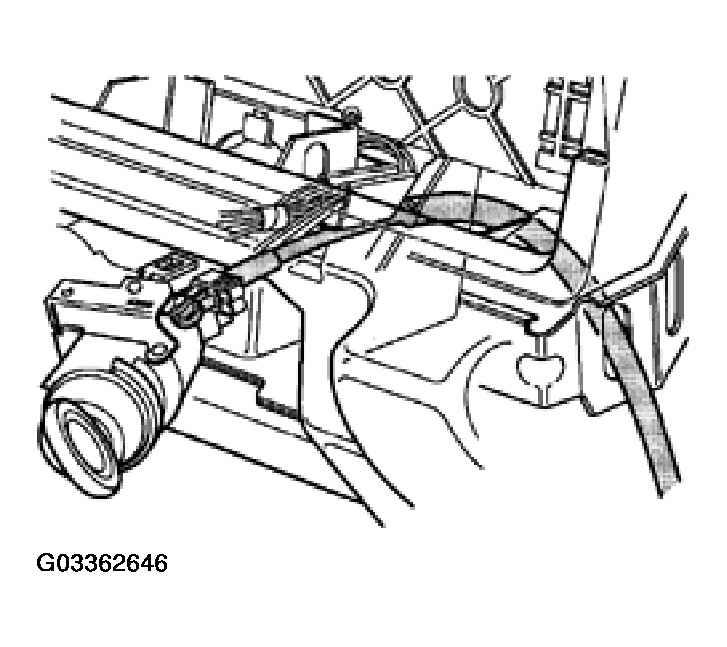

Fig 5: Routing Locking Cable

G03362646

Courtesy of VOLKSWAGEN OF AMERICA, INC.
