Gear selector elements, position
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

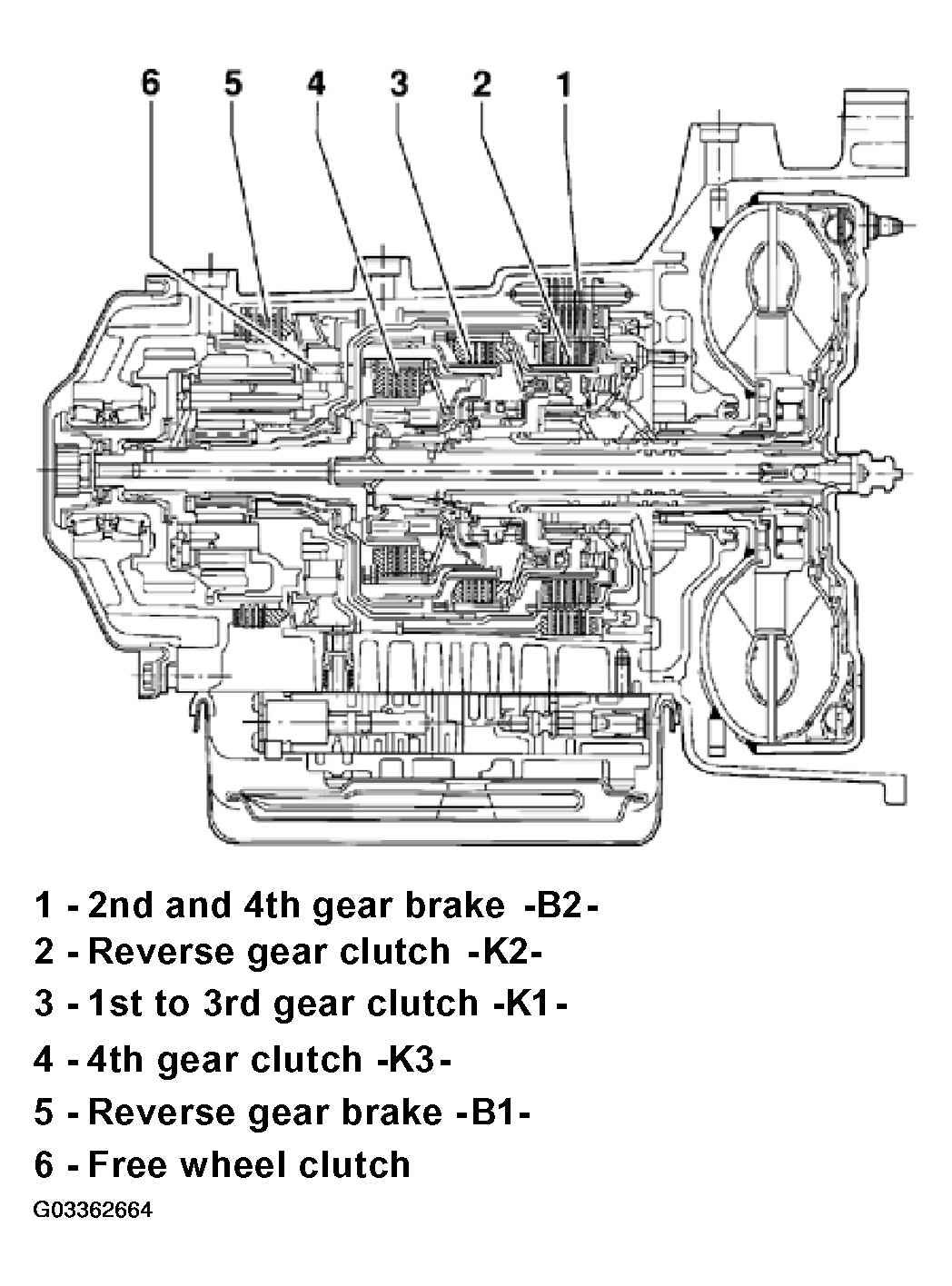

The following list refers to Fig 1.
- - 2nd and 4th gear brake -B2-
- - Reverse gear clutch -K2-
- - 1st to 3rd gear clutch -K1-
- - 4th gear clutch -K3-
- - Reverse gear brake -B1-
- - Free wheel clutch
The GEAR SELECTOR ELEMENTS TABLE (FROM 01.93) table shows which selector elements are operated for which gears, to help in dealing with complaints of poor performance, or for general drivetrain troubleshooting. The table makes it possible to determine which selector elements are not operating properly.
Before starting repairs to the transmission, first carry out the On Board Diagnostic program. See ON BOARD DIAGNOSTIC (OBD) .
