Gear selector elements, function

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with electronic program switch in Transmission Control Module (TCM)

GEAR SELECTOR ELEMENTS

Gear B1 B2 K1 K2 K3 F
R x     x
1H     x     x
2H   x x
3H     x x
4M   x     x

X = clutch, brake or free wheel engaged

H = hydraulic

M = mechanical

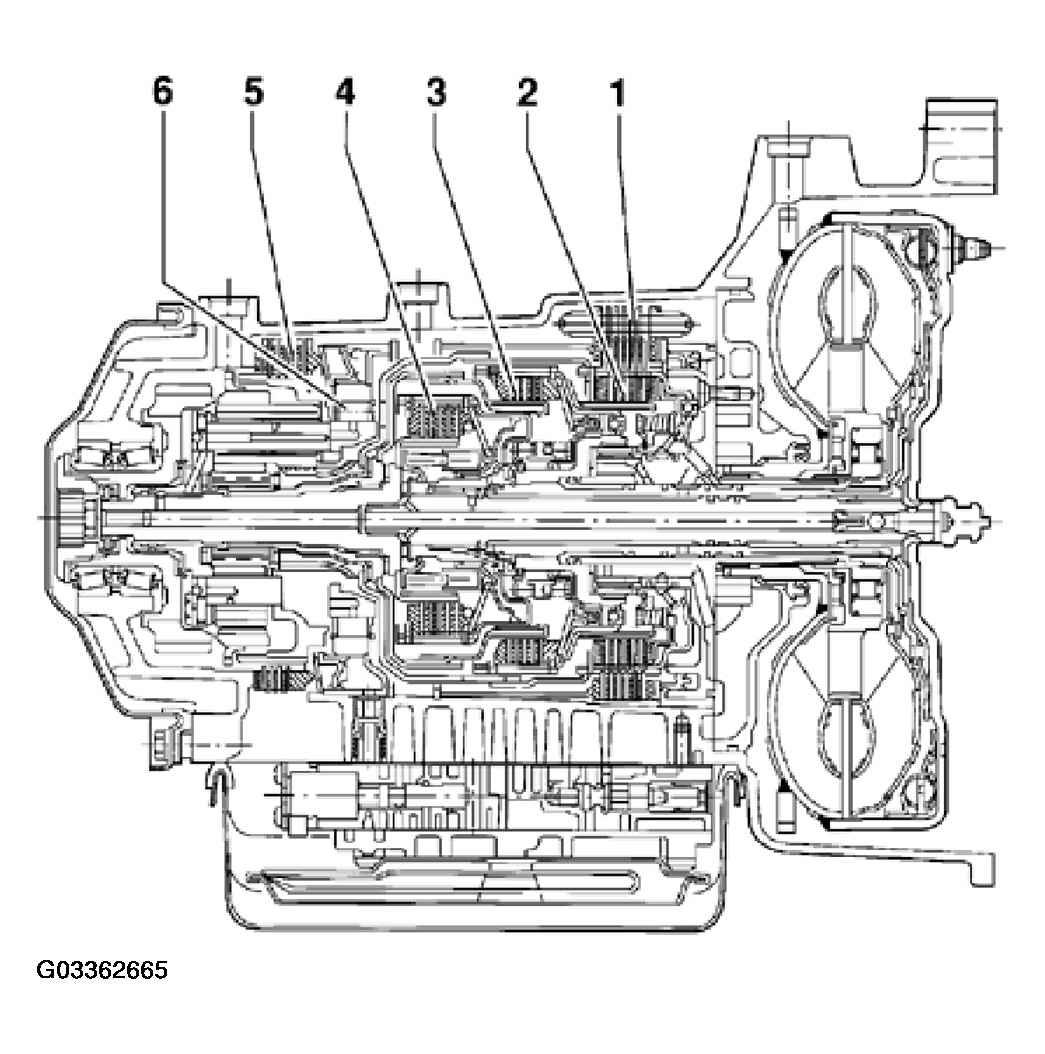

Fig 1: Identifying Gear Selector Elements Function (From 01.93)
G03362665Courtesy of VOLKSWAGEN OF AMERICA, INC.
