Coolant pump, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal, and note the following:

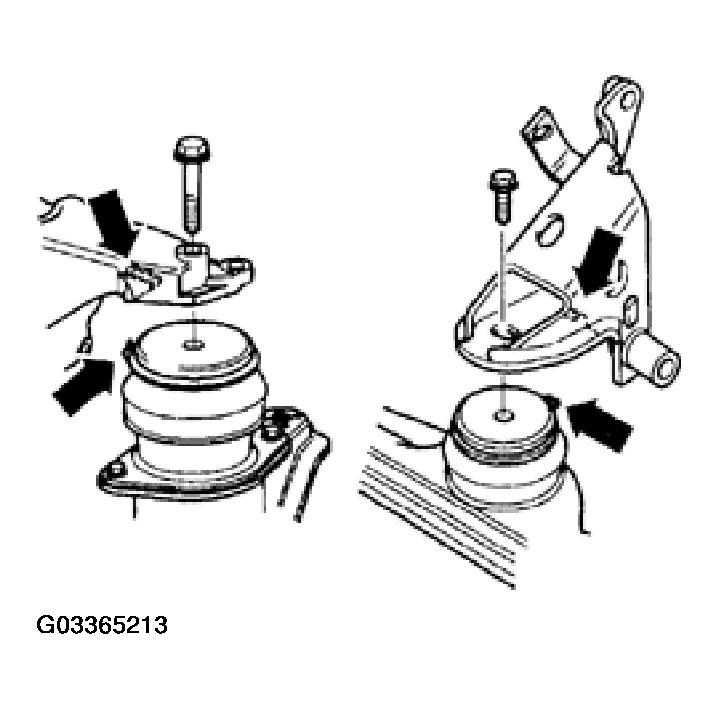

When installing front and right rear engine/ transmission mounts, make sure that recesses on brackets -upper arrows- engage lugs on bonded rubber mounts -lower arrows-.

Fig 1: Installing Front And Right Rear Engine/ Transmission Mounts
Install all engine/transmission assembly mounting bolts by hand and thread in approx. 5 -6 turns.
Align and relieve stress on mounts by rocking engine/transmission assembly.
First tighten front and right rear mounts, then tighten left rear mount.
- Tightening torques: See ENGINE/TRANSMISSION MOUNTS, TIGHTENING TORQUES .
Install Intake Air duct:.
Install poly-ribbed belt. See POLY-RIBBED BELT, REMOVING AND INSTALLING .
Fill with coolant. See COOLING SYSTEM, DRAINING AND FILLING .
