Engine/transmission mounts, tightening torques

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

(Bolts oiled)

Front engine mount

A - 60 Nm (44 ft lb)

B - 60 Nm (44 ft lb)

C = 55 Nm (41 ft lb)

Fig 1: Identifying Front Engine Mount

Right rear engine mount

A = 60 Nm (44 ft lb)

B = 60 Nm (44 ft lb)

C - 25 Nm (18 ft lb)

Fig 2: Identifying Right Rear Engine Mount

Left rear engine mount

A = 60 Nm (44 ft lb)

B = 25 Nm (18 ft lb)

C - 25 Nm (18 ft lb)

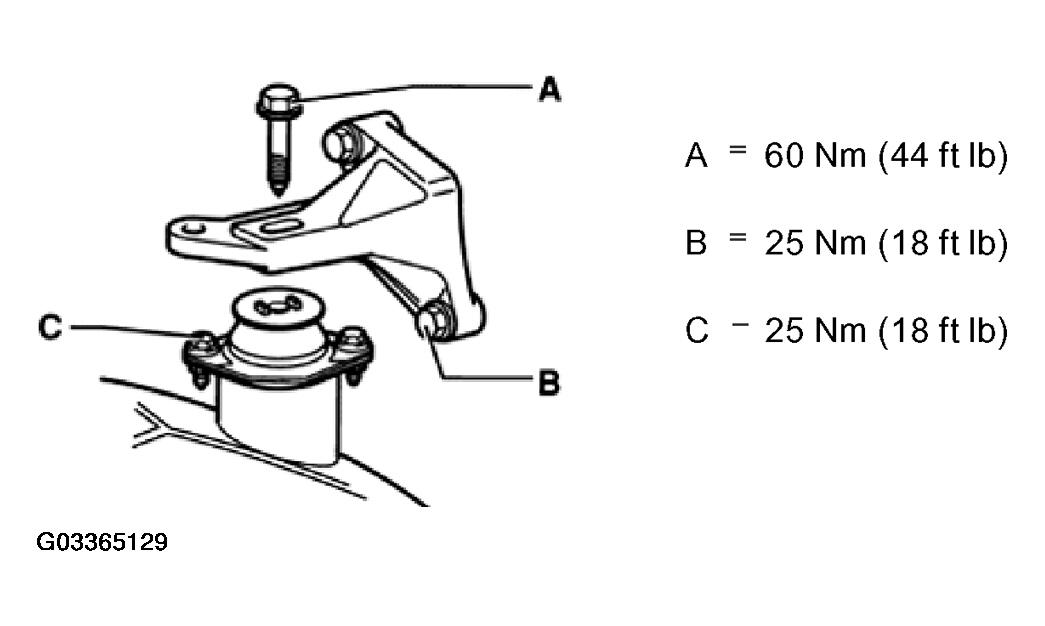

Fig 3: Identifying Left Rear Engine Mount
