Camshafts, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Oil running surfaces of both camshafts.

NOTE:

Observe marking for double chain direction of rotation!
When installing the camshafts the recess for aligning the camshaft sprockets -arrows- must be at the top. See Fig 1.
When installing camshaft bearing caps, make sure that the identification mark is readable from the exhaust side of cylinder head and that the arrow on each cap points toward the vibration damper end.

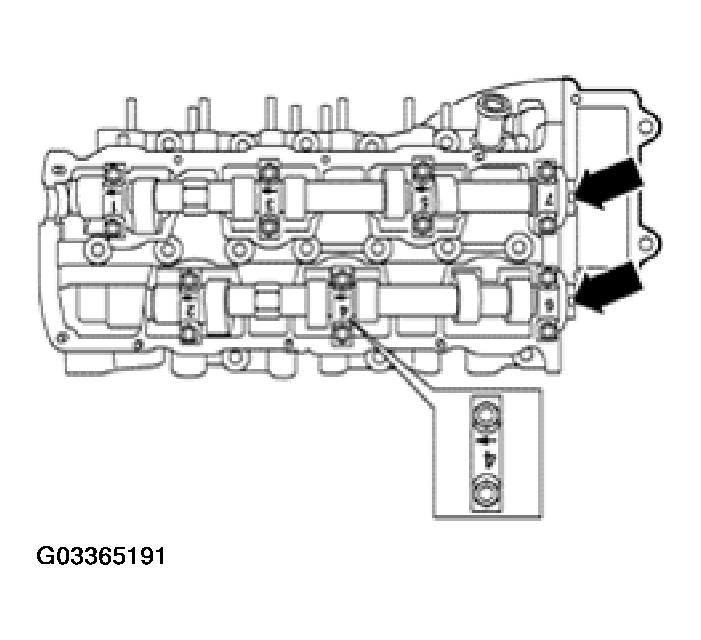

Fig 1: Aligning Camshaft Sprockets

Camshaft for cylinders 1, 3 and 5:

Slowly tighten bearing caps -3- and -5-. Alternate diagonally to tighten caps evenly.
Install bearing caps -1- and -7- and tighten.
- Tightening torque: 20 Nm (18 ft lb)

Camshaft for cylinders 2, 4 and 6

Slowly tighten bearing caps -2- and -6-. Alternate diagonally to tighten caps evenly.
Install bearing cap -4- and tighten.
- Tightening torque: 20 Nm (18 ft lb)
Clean sealing surfaces of camshaft sprocket cover and cylinder head.
Remove old sealant from 3 mm holes in cylinder head gasket -arrows-.

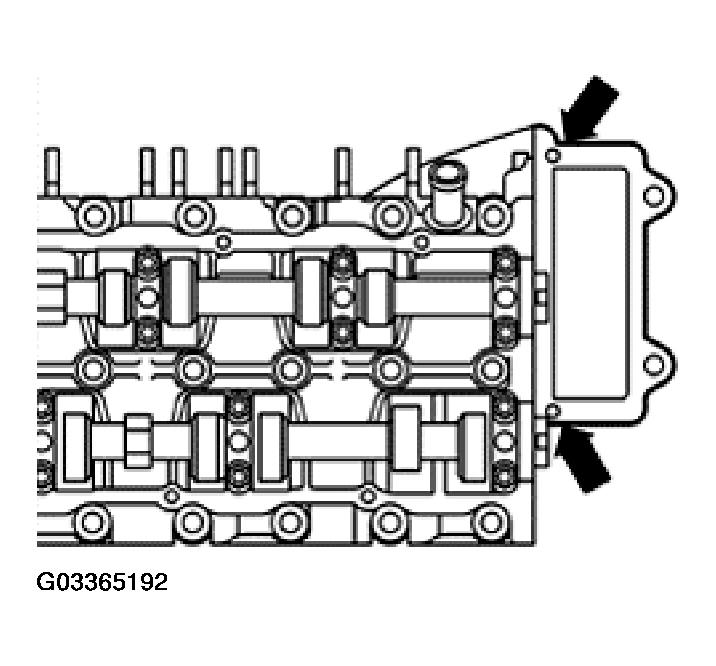

Fig 2: Locating 3mm Holes In Cylinder Head Gasket

NOTE: With the cylinder head installed, the holes in the cylinder head gasket are only half visible.

Install camshaft sprockets with double chain, See VALVE TIMING, ADJUSTING (ENGINE REMOVED) .
Fill 3 mm holes in cylinder head gasket with AMV 188 001 02 sealant.
Coat sealing surfaces of camshaft sprocket cover with AMV 188 001 02 sealant.
Oil O-ring (item - 13 -) and insert in camshaft sprocket cover.
Install camshaft sprocket cover, insert old mounting bolts until they are finger-tight.
First tighten M8 mounting bolts.
- Tightening torque: 25 Nm (18 ft lb)
Tighten M6 mounting bolts.
- Tightening torque: 10 Nm (7 ft lb)
Install chain tensioner for double chain.
- Tightening torque: 30 Nm (22 ft lb)

NOTE: If the chain tensioner has been pulled apart, bleed chain tensioner before installing: see PART I .

CAUTION: DO NOT start the engine for approx. 30 minutes after new hydraulic valve lifters have been installed. New hydraulic lifters are at maximum height and must be allowed time to bleed down or the valves will strike the pistons.
