Part I
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

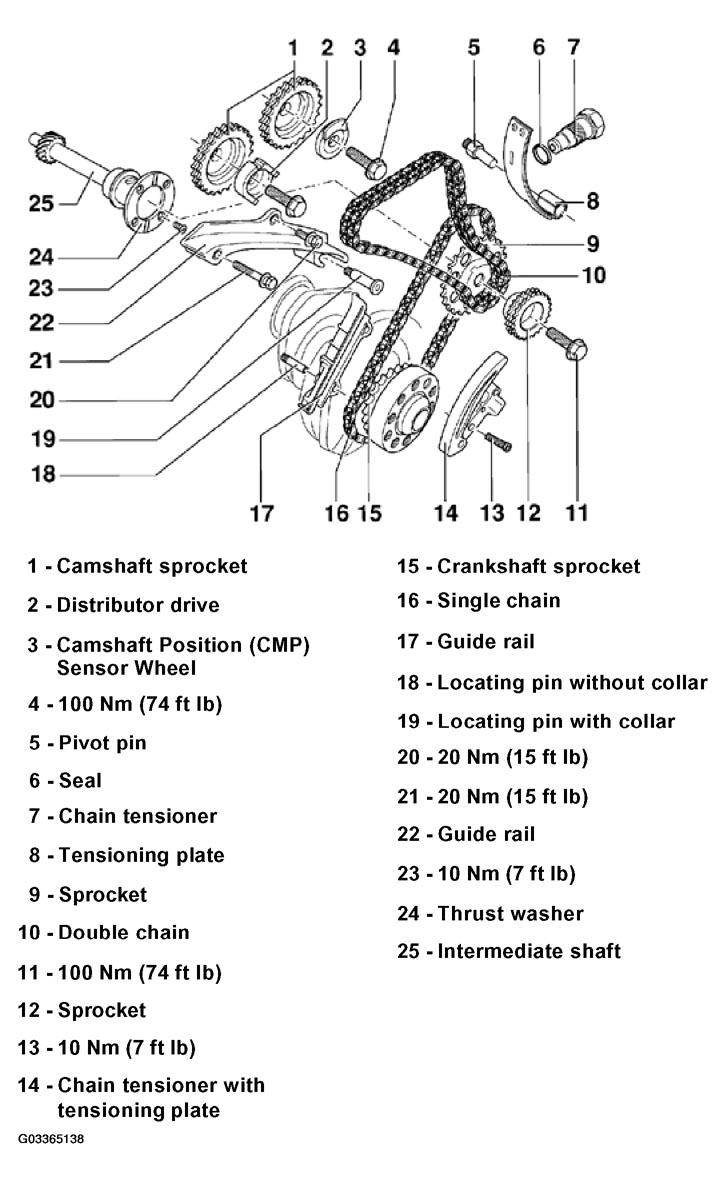

The following list pertains to Fig 1.
- Camshaft sprocket
- For double chain, item - 19 -
- Removing and installing - see Camshafts, removing and installing .
- Distributor drive
- Not for USA/Canada vehicles
- Camshaft Position (CMP) Sensor Wheel
- Only with distributor-less ignition
- For Camshaft Position (CMP) Sensor -G40-
- Contact surface of timing chain and sensor wheel must be dry when installing
- Removing and installing, see Camshafts, removing and installing
- 100 Nm (74 ft lb)
- Removing/installing: counterhold on camshaft with 24 mm open-end wrench, see Camshafts, removing and installing
- Oil bolt head contact surface when installing
- Pivot pin
- Tightening torque: 25 Nm (18 ft lb)
- For tensioning plate, item - 17 -
- Seal
- Always replace
- Chain tensioner
- For double chain, item - 19 -
- Tightening torque: 30 Nm (22 ft lb)
- Bleed before installing, See Bleeding double chain chain tensioner
- Rotate engine (crankshaft) only when chain tensioner is installed
- Tensioning plate
- For double chain, item - 19 -
- Sprocket
- For single chain, item - 25 -
- Installing, see VALVE TIMING, ADJUSTING (ENGINE REMOVED)
- Double chain
- Mark direction of rotation before removing (chains at installation position), see Marking single and double chains
- Installing, see VALVE TIMING, ADJUSTING (ENGINE REMOVED)
- 100 Nm (74 ft lb)
- Sprocket
- For double chain, item - 19 -
- Installing, see VALVE TIMING, ADJUSTING (ENGINE REMOVED)
- 10 Nm (7 ft lb)
- Chain tensioner with tensioning plate
- For single chain, item - 25 -
- Before installing, use small screwdriver to release locking spline in chain tensioner, and press tensioning plate against chain tensioner
- Rotate engine (crankshaft) only when chain tensioner is installed
- Crankshaft sprocket
- Integral part of crankshaft
- Ground down tooth aligns with main bearing cap joint when crankshaft is at Top Dead Center (TDC) for cylinder 1, see VALVE TIMING, ADJUSTING (ENGINE REMOVED)
- Single chain
- Mark direction of rotation before removing (chains at installation position), see Marking single and double chains
- Installing, see VALVE TIMING, ADJUSTING (ENGINE REMOVED)
- Guide rail
- For single chain, item - 25 -
- Remove together with single chain, see VALVE TIMING, ADJUSTING (ENGINE REMOVED)
- Locating pin without collar
- Tightening torque: 25 Nm (18 ft lb)
- For guide rail, item - 26 -
- Locating pin with collar
- Tightening torque: 25 Nm (18 ft lb)
- For guide rail, item - 31 -
- 20 Nm (15 ft lb)
- Install with locking fluid "D6"
- 20 Nm (15 ft lb)
- Guide rail
- For double chain, item - 19 -
- 10 Nm (7 ft lb)
- Insert with locking fluid "D6"
- Thrust washer
- Intermediate shaft
