Sealing flange and flywheel/drive plate, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- For repairs to the clutch:
See CLUTCH
- The sealing flange - 7 - can be removed and installed with the cylinder head installed.

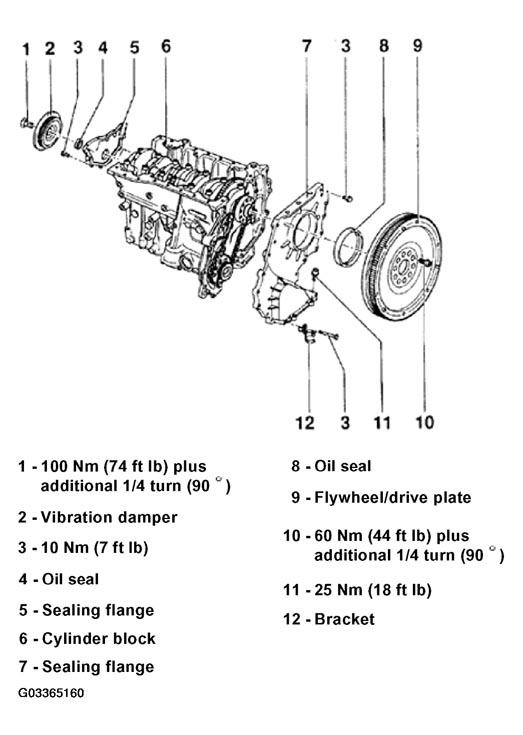

The following list pertains to Fig 1.
- 100 Nm (74 ft lb) plus additional 1/4 turn (90°)
- Always replace
- Counter-hold with 3273 to loosen and tighten
- Vibration damper
- 10 Nm (7 ft lb)
- Oil seal
- Replacing, see CRANKSHAFT OIL SEAL, REPLACING (VIBRATION DAMPER END)
- Sealing flange
- Coat sealing surfaces with AMV 188 001 02 sealant
- Cylinder block
- Removing and installing crankshaft, see CRANKSHAFT, REMOVING AND INSTALLING
- Disassembling and assembling pistons and connecting rods, see PISTONS AND CONNECTING RODS, DISASSEMBLING AND ASSEMBLING .
- Sealing flange
- Coat sealing surfaces with AMV 188 001 02 sealant
- If only the sealing flange has been removed, prepare cylinder head gasket for assembly, See Cylinder Head Gasket
- Sealing flange can be removed and installed with cylinder head installed
- Oil seal
- Remove with tool 2086
- Lightly oil sealing lip
- Install over sleeve 2003/2A
- Pull in up to stop with 2003/3
- Flywheel/drive plate
- To remove and install counter-hold with VW 558
- Removing and installing drive plate, see DRIVE PLATE, REMOVING AND INSTALLING
- 60 Nm (44 ft lb) plus additional 1/4 turn (90°)
- Always replace
- 25 Nm (18 ft lb)
- Bracket
- For coolant hose
