Double chain and chain tensioner with tensioning plate, installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

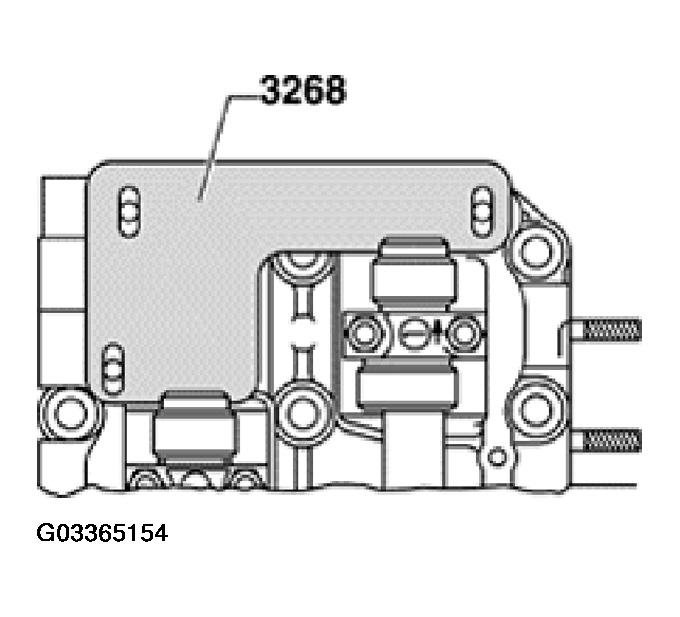

- Lock camshafts in position with camshaft jig 3268.
- Install tensioning plate pivot pins and tighten.
- Tightening torque: 25 Nm (18 ft lb)
- Install tensioning plate for chain tensioner (for double chain).
- Install locating pin with collar for guide rail and tighten.
- Tightening torque: 25 Nm (18 ft lb)
NOTE:
With cylinder head removed:
- Install cylinder head, see CYLINDER HEAD, INSTALLING .
- Place guide rail on locating pin. Apply thread locking fluid "D6" to short securing bolt and tighten both bolts.
- Tightening torque: 20 Nm (15 ft lb)
- Place double chain in position on intermediate shaft sprocket (note direction of rotation for double chain, see Marking single and double chains ).
- Mount camshaft sprocket and double chain to camshaft for cylinders 2, 4 and 6 (short camshaft) and tighten by hand.
- Install camshaft sprocket (together with sensor wheel for Camshaft Position (CMP) Sensor - G40-) and double chain on camshaft for cylinders 1, 3 and 5, and tighten by hand.
NOTE:
- Contact surface of timing chain and sender wheel must be dry when installing.
- Oil head contact surface of bolts when installing.
- Remove camshaft jig 3268.
- Tighten securing bolts for camshaft sprockets.
- Tightening torque: 100 Nm (74 ft lb)
NOTE:

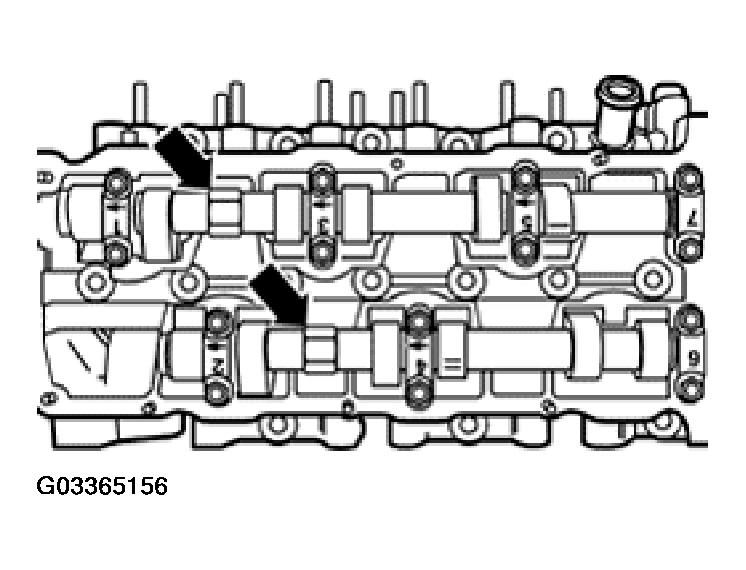

Counter-hold only by using a 24 mm open-end wrench on the camshaft -arrows-. See Fig 3.
CAUTION:
The camshaft jig 3268 must not be installed when tightening or loosening the sprockets.
- Coat sealing surface of sealing flange with AMV 188 001 02 sealant and install. Tighten securing bolt.
- Tightening torque: 10 Nm (7 ft lb)
- Replace sealing flange oil seal, see Engine installed, cylinder head removed .
- Prepare cylinder head gasket for assembly, See CYLINDER HEAD, INSTALLING .
- Coat camshaft sprocket cover sealing flange with AMV 188 001 02 sealant.
- Oil O-ring (item 11) and insert in camshaft sprocket cover.
- Install camshaft sprocket cover, insert all securing bolts and tighten lightly.
- First tighten M8 securing bolt.
- Tightening torque: 25 Nm (18 ft lb)
- Tighten M6 securing bolts.
- Tightening torque: 10 Nm (7 ft lb)
- Install double chain tensioner and tighten.
- Tightening torque: 30 Nm (22 ft lb)
NOTE:
- If the chain tensioner has been pulled apart, bleed chain tensioner before installing, see Bleeding double chain tensioner .
- Rotate engine (crankshaft) only with chain tensioner installed, otherwise single or double chain will jump over sprockets!
- Turn crankshaft two full turns in direction of engine rotation and check valve timing, see VALVE TIMING, CHECKING .
