EVAP with ORVR system components, servicing, Vehicles 2000 and up
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

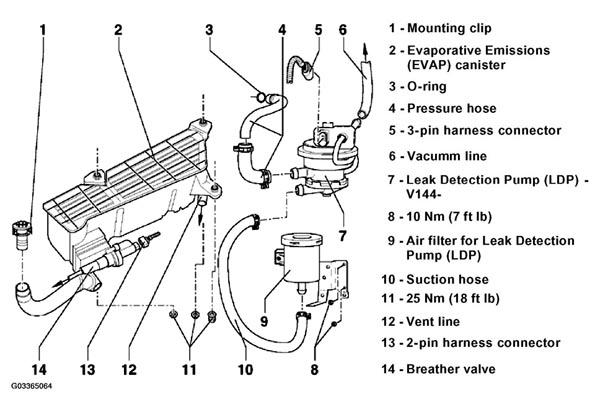

The following list pertains to Fig 1 .
- Mounting clip
- Evaporative Emissions (EVAP) canister
- Behind right rear wheelhousing
- mounted on body
- O-ring
- Replace if damaged
- Pressure hose
- Check for tight fit
- 3-pin harness connector
- Black
- Vacuum line
- to intake manifold upper section, see EVAPORATIVE EMISSIONS SYSTEM, OVERVIEW, VEHICLES 2000 AND UP (item -6-)
- Leak Detection Pump (LDP) -V144-
- Checking, see LEAK DETECTION PUMP, CHECKING
- 10 Nm (7 ft lb)
- Air filter for Leak Detection Pump (LDP)
- Suction hose
- Check for tight fit
- 25 Nm (18 ft lb)
- Vent line
- Black
- Check for tight fit
- From pressure retention valve, see ACCELERATOR PEDAL CABLE, ADJUSTING (item -34 -)
- 2-pin harness connector
- Black
- Breather valve
- Black
- to leak detection pump (item -7-)
