Evaporative emissions system, overview, Vehicles 2000 and up
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

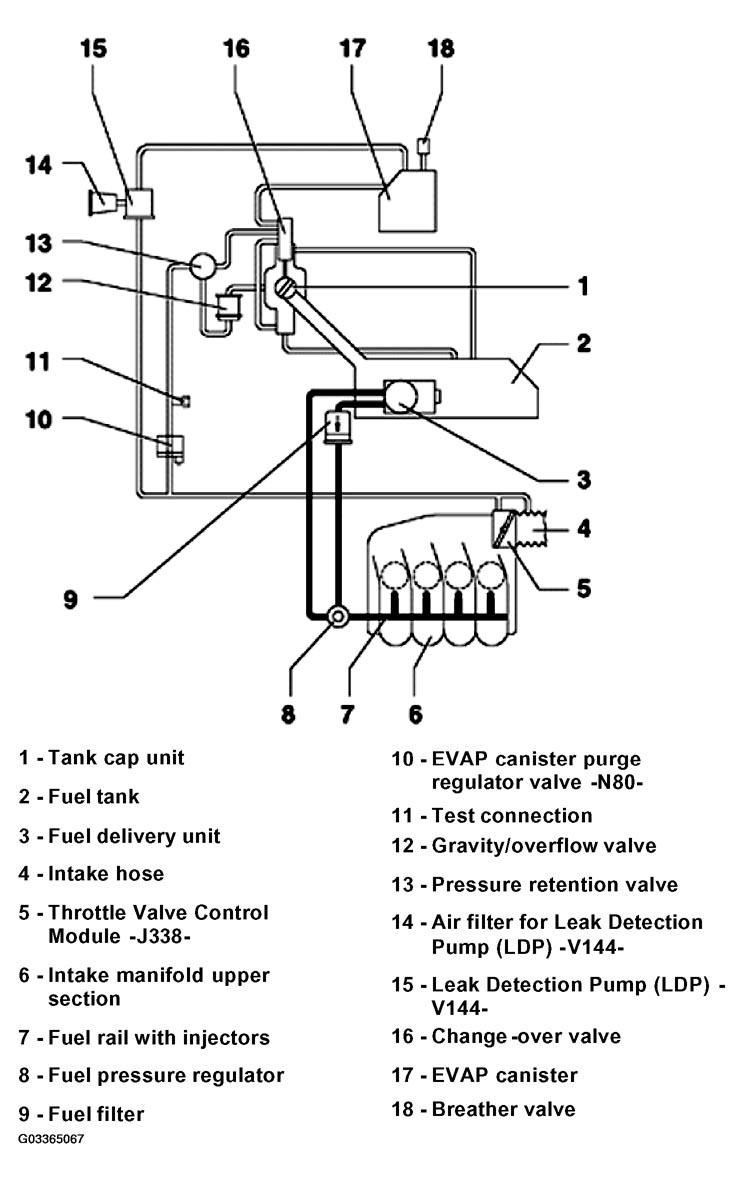

The following list pertains to Fig 1 .
- Tank cap unit
- Fuel tank
- Fuel delivery unit
- Intake hose
- Throttle Valve Control Module -J338-
- Intake manifold upper section
- Fuel rail with injectors
- Fuel pressure regulator
- Fuel filter
- Installation position: Arrow points in direction of flow
- EVAP canister purge regulator valve -N80-
- In right engine compartment,
- Installation position: Arrow points in direction of flow
- Function, checking, see EVAP CANISTER PURGE REGULATOR VALVE -N80-, CHECKING, VEHICLES 2000 AND UP
- Test connection
- Gravity/overflow valve
- Pressure retention valve
- Air filter for Leak Detection Pump (LDP) -V144-
- Leak Detection Pump (LDP) -V144-
- In right engine compartment
- Change -over valve
- EVAP canister
- Behind right rear wheelhousing
- Mounted on body
- Breather valve
