Lubrication system, components: Notes
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

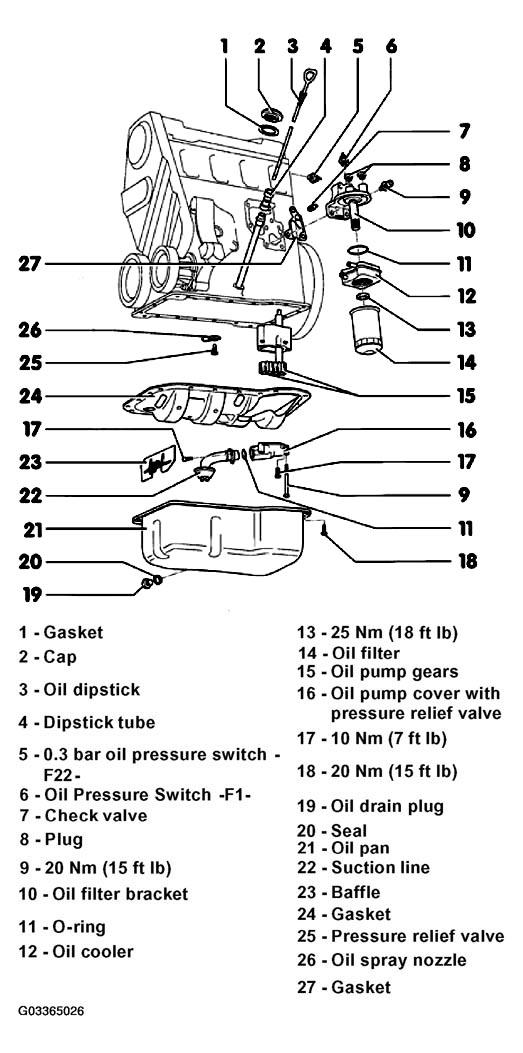

The following list pertains to Fig 1.
- Gasket
- Replace if damaged
- Cap
- Oil dipstick
- Dipstick tube
- 0.3 bar oil pressure switch -F22-
- 25 Nm (18 ft lb)
- Wire: blue/black
- Checking, see OIL PRESSURE AND OIL PRESSURE SWITCHES, CHECKING
- If leaking, cut seal and replace
Engines up to 07.95
- 0.3 bar (4.4 psi)
- Housing: brown
Engines 08.95 and up
- 0.25 bar (3.6 psi)
- Housing: blue
- Oil Pressure Switch -F1-
- 1.8 bar (26 psi)
- 25 Nm (18 ft lb)
- Housing: white
- Wire: yellow
- Checking, see OIL PRESSURE AND OIL PRESSURE SWITCHES, CHECKING
- If leaking, cut seal and replace
- Check valve
- Nm (44 in lb)
- Plug
- 20 Nm (15 ft lb)
- Oil filter bracket
- O-ring
- Always replace
- Oil cooler
- On flange side coat contact surfaces outside seal with AMV 188 100 02
- Ensure clearance to surrounding components
- Note on, see LUBRICATION SYSTEM, GENERAL INFORMATION
CAUTION: Part numbers are listed here for reference only. Always check with your Parts department for the latest information. - 25 Nm (18 ft lb)
- Oil filter
- Loosen with filter wrench
- Tighten by hand
- Note installation instructions on filter
- Oil pump gears
- Checking backlash, see Checking Oil Pump Backlash
- Checking axial clearance, see Checking Oil Pump Axial Clearance
- Oil pump cover with pressure relief valve
- Opening pressure: 5.7 -6.7 bar (82.5-97 psi)
- 10 Nm (7 ft lb)
- 20 Nm (15 ft lb)
- Loosen or tighten bolts on flywheel side with tool 3185
- Oil drain plug
- 30 Nm (22 ft lb)
- Replace if leaking. See Parts Catalog for correct application. In some cases, seal and drain plug are combined; do not interchange with separate seal and drain plug.
- Seal
- Always replace
- Oil pan
- Clean mating surface before assembly
- Suction line
- Clean screen if dirty
- Baffle
- To remove, remove oil pump cover or suction line
- Gasket
- Always replace
Gasket with baffle plate (where applicable):
- Replace if damaged
- To remove, remove oil pump cover
- Always replace
- Pressure relief valve
- For oil spray nozzle
- 25 Nm (18 ft lb)
- Opening pressure: 2.5 -3.2 bar (36 -46.5 psi)
- Not applicable 08.95 and up
- Oil spray nozzle
- For piston cooling
- Not applicable 08.95 and up
- Gasket
- Always replace
