Reconditioned cylinder heads with camshaft bearing shells

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Reconditioned cylinder heads or replacement engines are sometimes supplied with camshaft bearing shells.

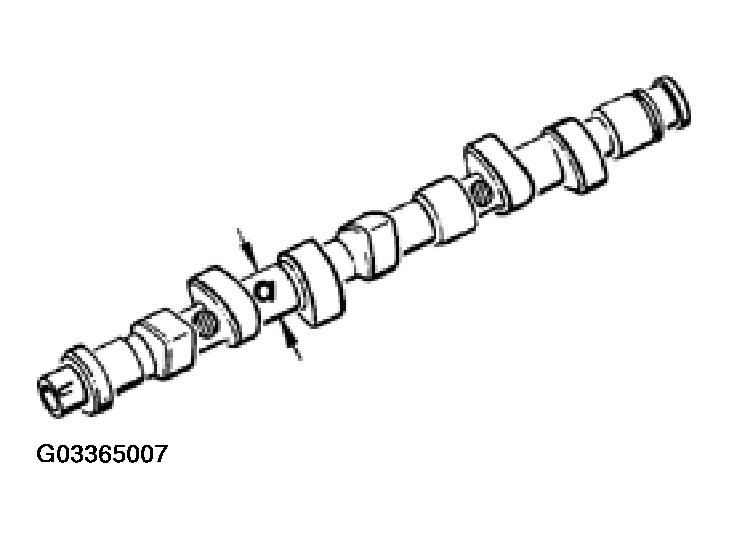

Fig 1: Identifying Camshaft
G03365007Courtesy of VOLKSWAGEN OF AMERICA, INC.

Standard camshaft:

Undersize camshaft:

Marked with yellow paint dot on VW-Audi logo

NOTE: Undersize camshafts are not supplied as replacement parts. For replacement, install standard dimension camshaft with appropriate bearing shells.
