Camshaft, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper drive belt guard.
Loosen camshaft drive belt sprocket using 3036 retainer.
Move camshaft drive belt sprocket to cyl. 1 TDC mark by turning crankshaft.
Mark on camshaft drive belt sprocket must line up with arrow on drive belt guard.
Loosen tensioner and remove drive belt.

NOTE: Removing and installing thermo tension roller for model years 1997 and beyond, see THERMO TENSION ROLLER (1997 AND UP), REMOVING AND INSTALLING .

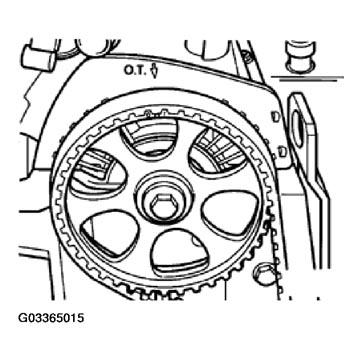

Fig 1: Moving Camshaft Drive Belt Sprocket To Cyl. 1 TDC Mark

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove upper intake manifold and remove cylinder head cover.
Remove camshaft drive belt sprocket.
Remove Woodruff key from camshaft.
Remove camshaft bearing caps 1, 3 and 5.
Loosen camshaft bearing caps 2 and 4 alternately and diagonally, and remove.
