Reconditioned cylinder heads with camshaft bearing shells

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

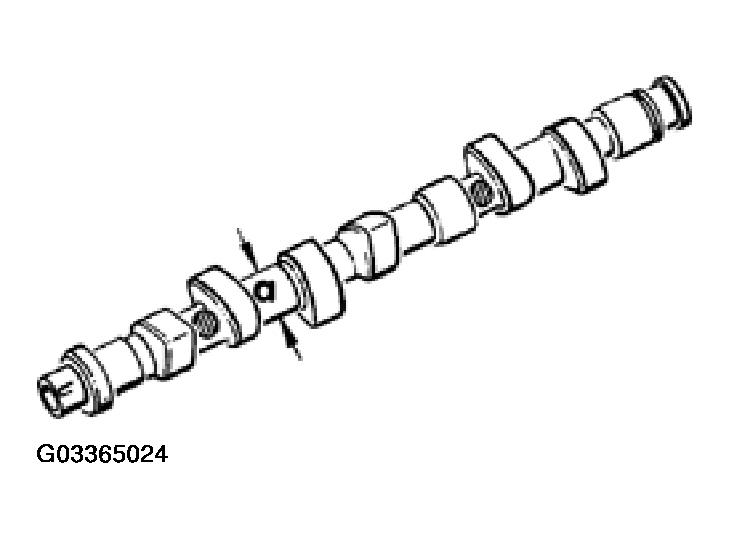

Fig 1: Identifying Camshaft Dimensions (Models From 12.94 And Up)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Reconditioned cylinder heads or replacement engines are sometimes supplied with camshaft bearing shells.

Standard camshaft:

Dimension -a-: 26.00 mm (1.0236 in.)

Undersize camshaft:

Dimension -a-: 25.75 mm (1.0138 in.)

Marked with yellow paint dot on VW-Audi logo

NOTE: Undersize camshafts are not supplied as replacement parts. For replacement, install standard dimension camshaft with appropriate bearing shells.
