Removing drive (timing) belt

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove vibration damper/pulley.
Turn flywheel -A- or driveplate -B- to align mark (arrows) and place No. 1 cylinder at TDC (top dead center).

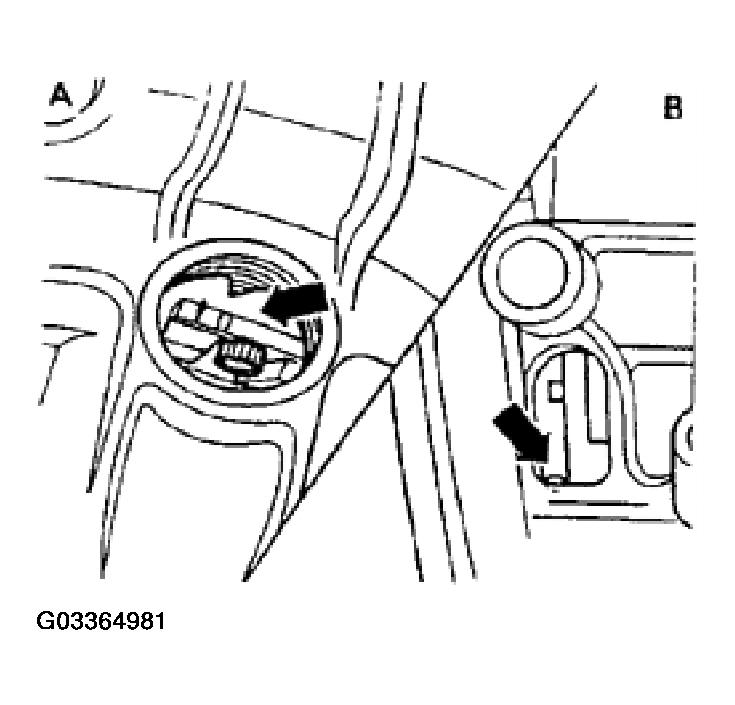

Fig 1: Turning Flywheel/Driveplate To Timing Mark (No. 1 Cylinder At TDC)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove lower drive (timing) belt guard.
Remove fastener for drive (timing) belt thermo tension roller.
Remove belt and roller.

NOTE: Mark the running direction on the drive (timing) belt.

Remove drive (timing) belt thermo tensioner.
