Installing thermo tension roller

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Assemble new thermo tension roller and install on engine block.

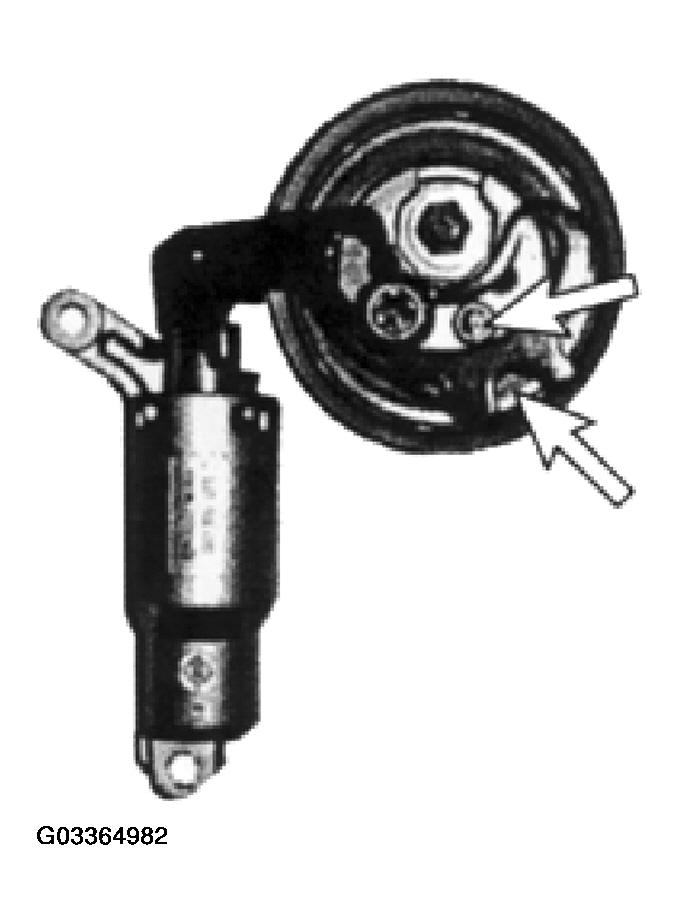

Fig 1: Installing Timing Belt (Camshaft Drive Belt) Thermo Tension Roller
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Bolt/washer assembly (2x) tightening torque, see INSTALLING V-BELT AND RIBBED BELT .

Collar screw and 6 mm fastening nut tightening torque, see INSTALLING V-BELT AND RIBBED BELT .

CAUTION: DO NOT turn the camshaft while any piston is at TDC position. There is risk of damage to valves and piston crowns.
