Installing drive (timing) belt

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Align mark on camshaft drive sprocket with mark on cylinder head cover and/or drive (timing) belt guard.
Place drive (timing) belt on crankshaft gear (note running direction of belt).
Turn tension roller to the right using two-pin spanner -B-, with one pin inserted in hole in roller and other pin in slot at bottom of roller pivot bracket (see arrows in Figure) until:
- Piston -1- is driven all the way out
- Piston -2- lifts up approx. 1.0 mm (0.040 in.)

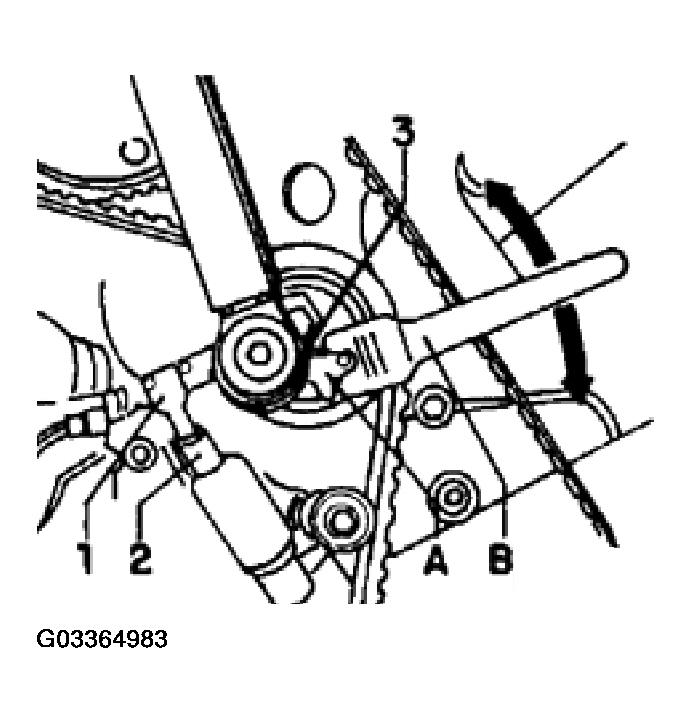

Fig 1: Turning Tension Roller (Camshaft Drive Belt)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Tighten mounting bolt -3- by hand.
Rotate engine 2 revolutions in running direction.
Counter-hold thermo tension roller with two-pin spanner and tighten mounting bolt -3- to 25 Nm (18 ft lb).
Install lower drive (timing) belt guard.
Install vibration damper/pulley.
