Ribbed belt, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Lift belt tensioner with 3299 ribbed belt installation tool to relieve belt tension, and remove belt from generator pulley.

NOTE: Fig 1 shows belt drive for vehicles without A/C. Also, see INSTALLING .

Remove V-belt for power steering pump, see V-BELT TENSION, ADJUSTING .
Install ribbed belt on crankshaft vibration damper.
Install V-belt for power steering pump, see V-BELT TENSION, ADJUSTING .

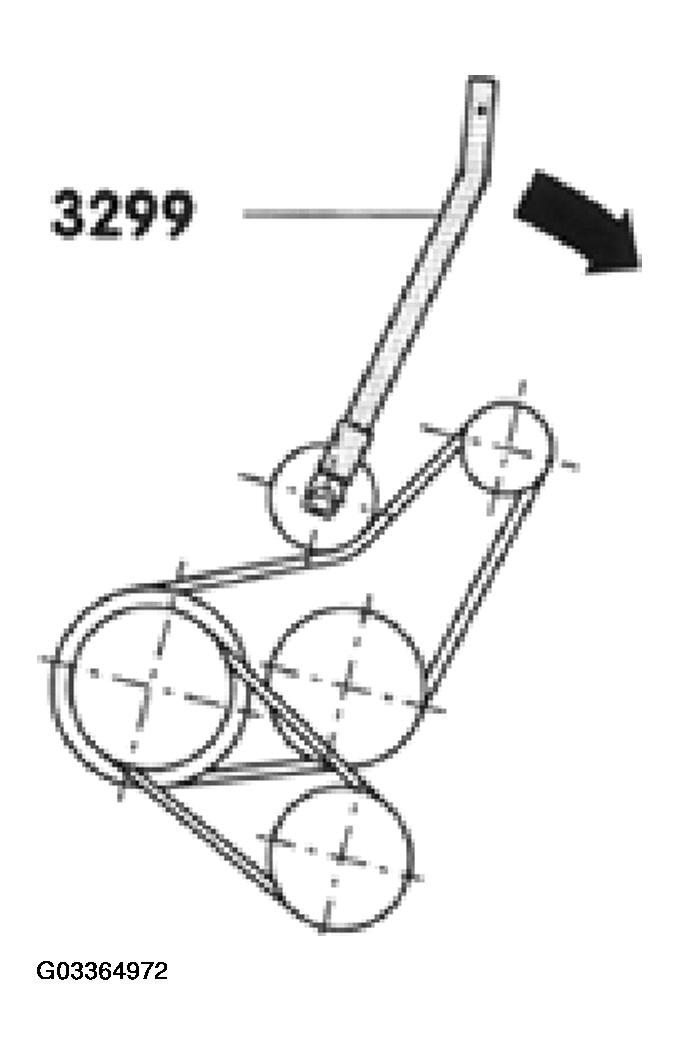

Fig 1: Removing Ribbed Belt
Courtesy of VOLKSWAGEN OF AMERICA, INC.
