Driveplate, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install driveplate using washer with cut-outs -1-.
Install new bolts -3- and tighten to 30 Nm (22 ft lb).

Fig 1: Identifying Driveplate Assembly Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Check dimension -a- at three points and calculate average value.
Specified value: 19.5-21.1 mm (0.768-0.831 in.)

If NOT:

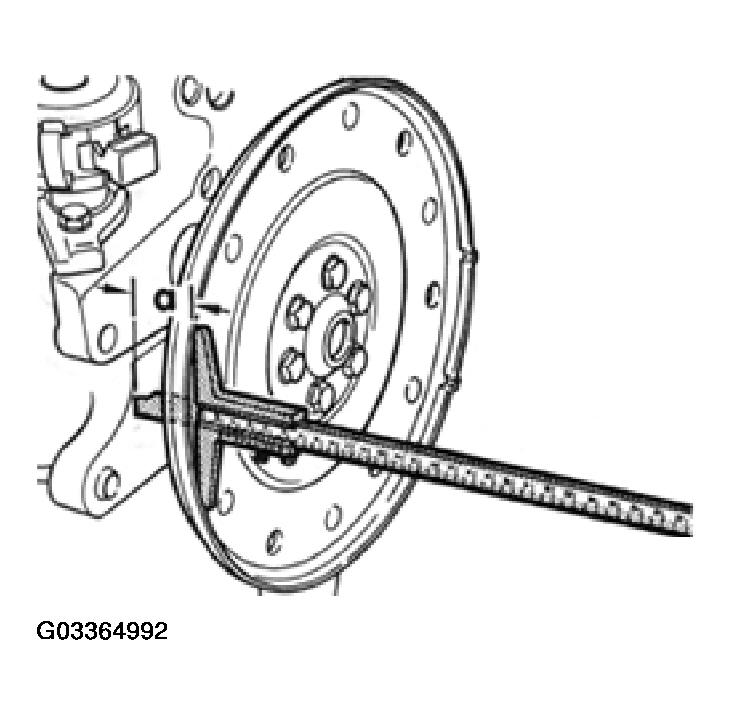

Fig 2: Checking Flywheel Installed Dimension

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove driveplate and install shim -2-.
Tighten bolts -3- to 30 Nm (22 ft lb).
Tighten bolts -3- to 60 Nm (44 ft lb) plus 1/4-turn (90°).

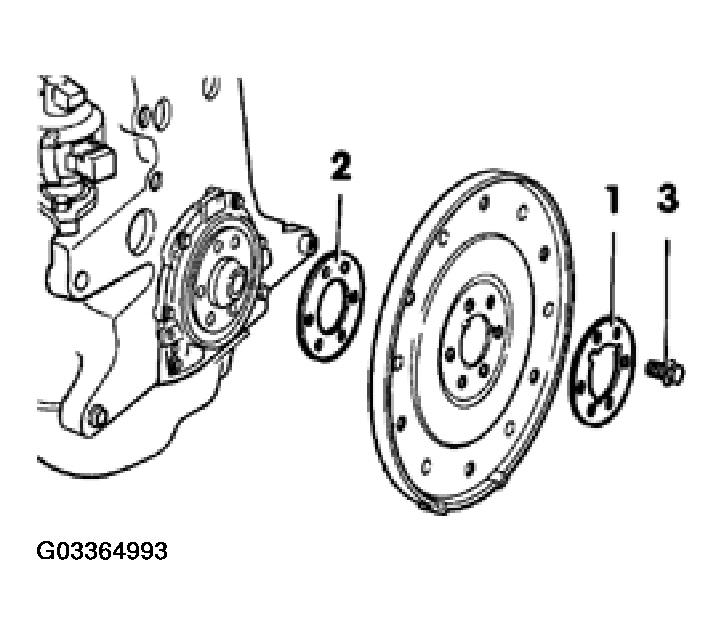

Fig 3: Removing Driveplate And Installing Shim
Courtesy of VOLKSWAGEN OF AMERICA, INC.
