Crankshaft seal, pulley side, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Lightly oil sealing lip.
Install guide sleeve from 3083 on crankshaft.

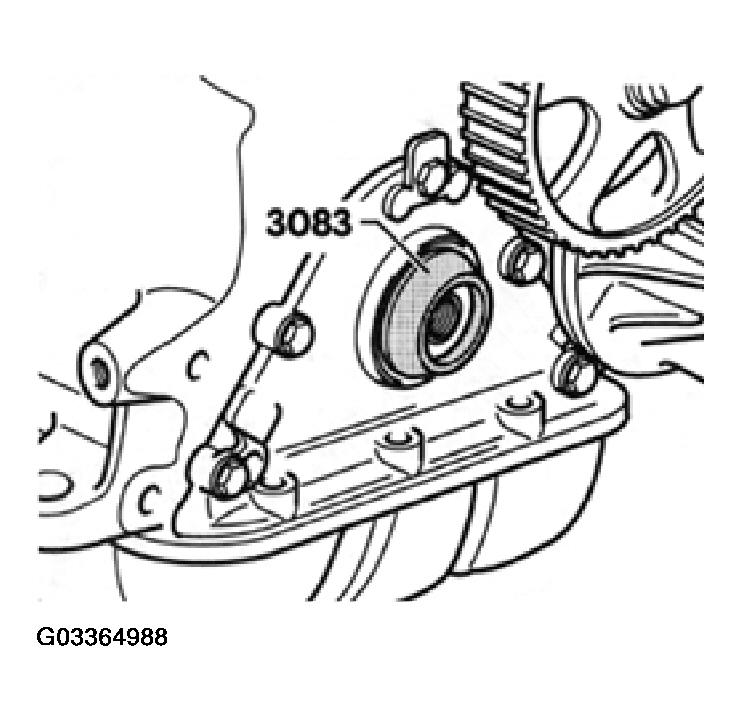

Fig 1: Installing Guide Sleeve On Crankshaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Slide seal on over guide sleeve.

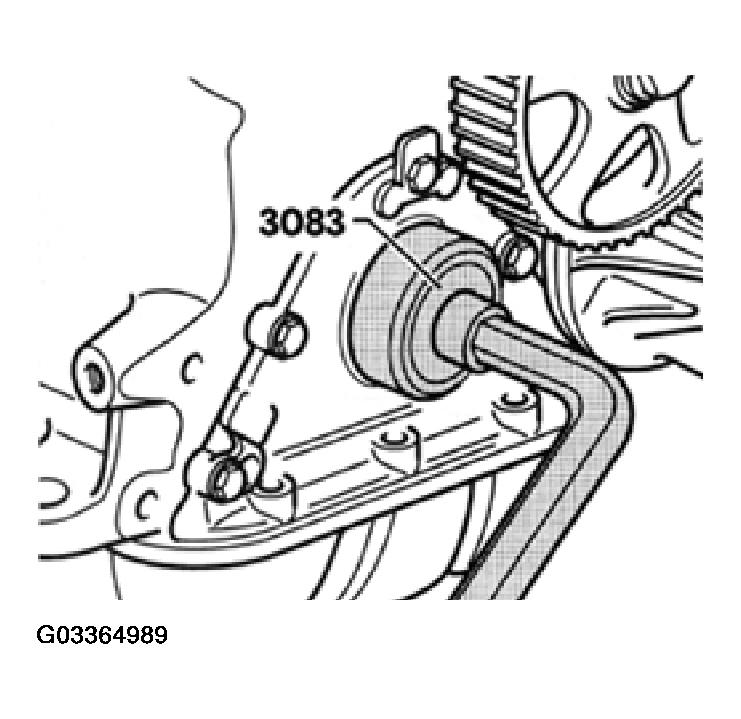

Fig 2: Installing Crankshaft Front Oil Seal
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Press seal in to stop with 3083.
Install drive belt and adjust tension, see DRIVE BELT, REMOVING, INSTALLING AND ADJUSTING TENSION .
