Checking Cylinder Bore
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

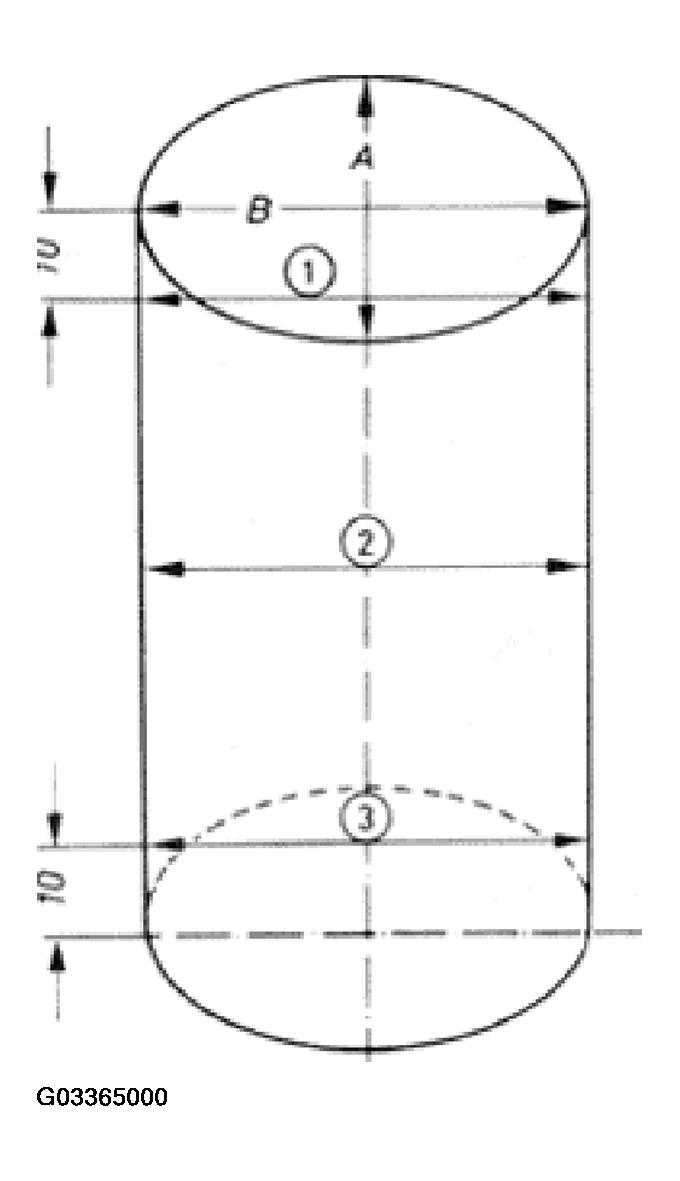

- Measure in direction -A- perpendicular to crankshaft, and direction -B- parallel to crankshaft.
- Measure at -1- 10 mm (0.039 in.) from top, -2- (center) and -3- 10 mm (0.039 in.) from bottom.
Use 50-100 mm internal micrometer.
Maximum deviation from nominal diameter: 0.08 mm (0.0015 in.)
CAUTION:
DO NOT measure cylinder bore when cylinder block is mounted in VW540 holding fixture. Measurement accuracy can be affected by cylinder block distortion as it hangs down from the engine stand.
