Vehicles with A/C

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Disconnect A/C refrigerant line brackets and support points only.
DO NOT open the air conditioning refrigerant circuit.
Avoid damage from bending. Refrigerant lines kink easily.
The A/C refrigerant circuit must only be opened by specially trained technicians using the proper tools and equipment.

To remove and install the engine without opening A/C refrigerant circuit:

Remove fasteners for A/C receiver/dryer and let hang free (DO NOT disconnect refrigerant lines).
Remove drive belt. See DRIVE BELT, REMOVING, INSTALLING AND ADJUSTING TENSION .
Remove radiator with fan and condenser and place in front of engine mount.

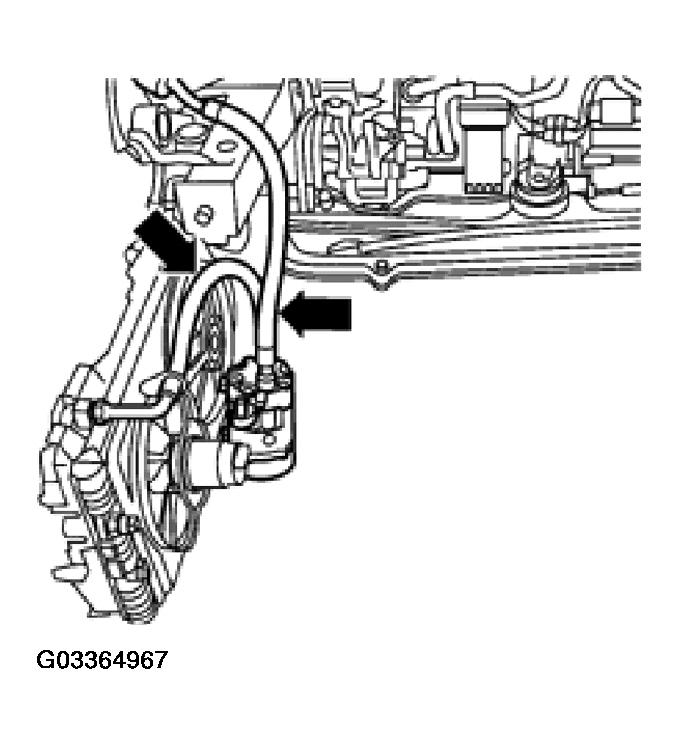

Fig 1: Removing Radiator With Fan And Condenser
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Unscrew bracket for refrigerant line on upper radiator support.
Remove A/C compressor and place to the side with radiator, fan and condenser.
CAUTION: Refrigerant hoses must not be stressed (arrows).
