Vehicles with manual transmission

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect clutch cable
See CLUTCH CABLE, REMOVING AND INSTALLING .
Attach engine sling to shop crane as follows:

Drive belt side:

2nd hole up from hook in cross bar position -1-

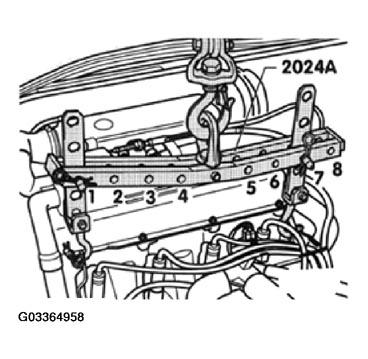

Fig 1: Attaching Engine Sling To Shop Crane

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Flywheel side:

2nd hole up from hook in cross bar position -7-

CAUTION: Use cotter pins on hooks and pins.

NOTE:

The end of the cross bar marked with installation positions 1-4 points toward drive belt.
Holes in the hooks are counted from the hook end.
