Vehicles with automatic transmission

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive belt, see DRIVE BELT, REMOVING, INSTALLING AND ADJUSTING TENSION .
Remove crankshaft pulley/vibration damper.
Remove coolant pulley pump.
Install engine sling as follows and raise slightly with shop crane:
Drive belt side:
- 4th hole up from hook in cross bar position -1-
Flywheel side:
- 2nd hole up from hook in cross bar position -6-

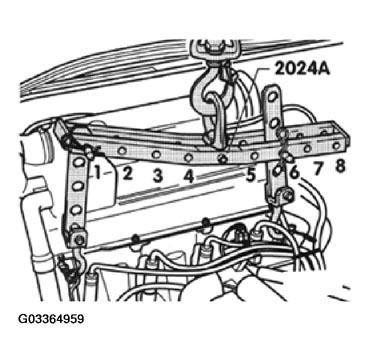

Fig 1: Installing Engine Sling
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION: Use cotter pins on hooks and pins.

NOTE:

The end of the cross bar marked with installation positions 1-4 points toward drive belt.
The holes in the hooks are counted from the hook end.
