Engine mount rubber bushing, replacing
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Install 10-222A engine support bridge with 10-222A/1 bracket for engine.
- Connect engine sling in hook eye on cylinder head (left side) and tighten to lift engine slightly.
- Remove engine mount.
- Pry washers off spacer sleeves with pliers.

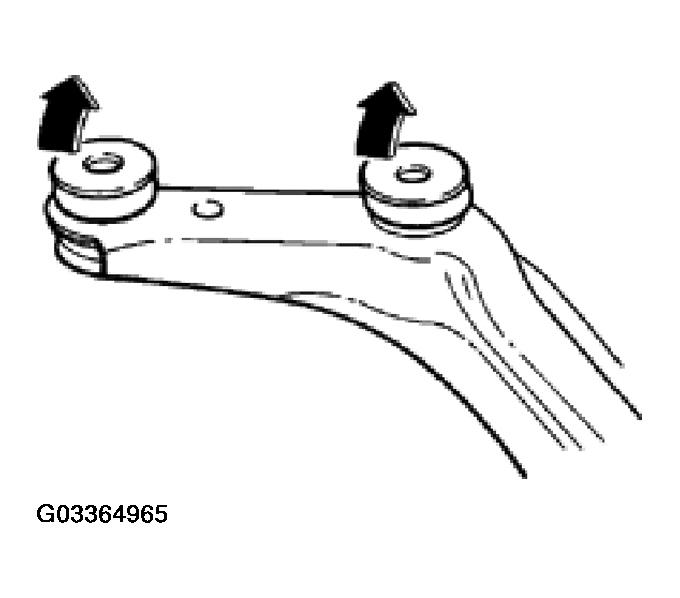

- Remove spacer sleeves and pull off bonded rubber bushings.
- Install new bonded rubber bushings and insert spacer sleeves as far as possible.

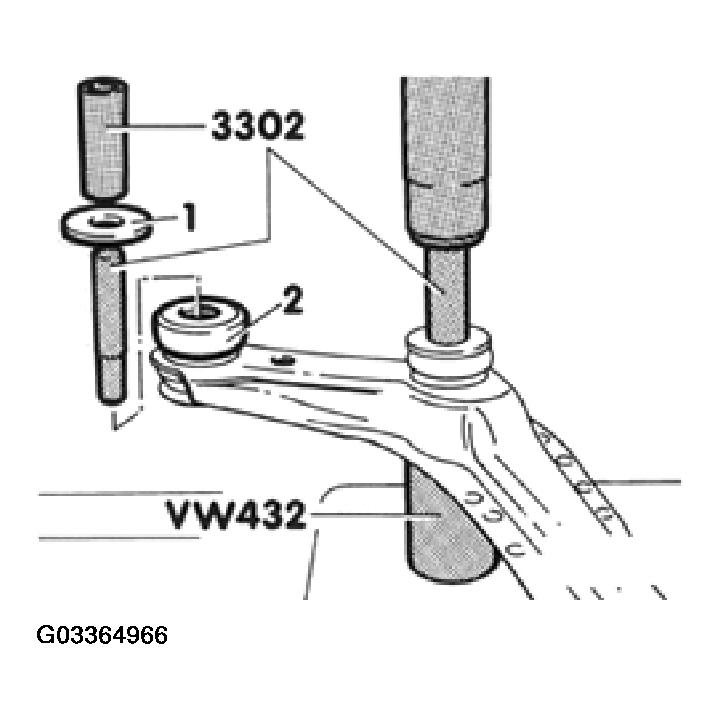

- Install washers -1- over 3302 peening punch and onto bonded rubber bushing -2-.
- Install pressure sleeve of 3302 peening punch and press on.
- Crimp washers on spacer sleeves using press. Use VW432 arbor as support.
- If necessary, remove burrs caused by crimping.
