Engine code letters: AAA: Requirements:
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- VAG 1551 Scan Tool (ST) connected
- Connect VAG 1363A CO tester, with VAG 1363/3 adapter to CO tap tube next to the throttle valve body (where applicable).
- Start engine and run at idle.
On VAG 1551 Scan Tool (ST):
- Press button -1- for "Rapid data transfer" mode.
- Press buttons -0- and -1- to enter address word 01 for "Engine Electronics" and press -Q- button to confirm input.
- Press --> button.
- Press buttons -0- and -4- to select "Basic setting" function 04, and press -Q- button to confirm input.
Press button -0- twice to enter display group number 00, and press -Q- button to confirm input

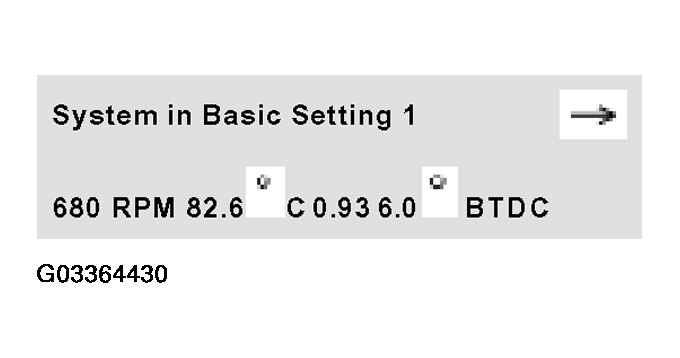

Example of readout in display:
NOTE:
Evaporative Emission (EVAP) Canister Purge Regulator Valve (N80) is closed in the "Basic Setting" function.
Continue with the test only after engine temperature is above 80 °C (display field 2).
- Briefly increase engine speed (blip throttle), and then run engine at idle speed for 2 minutes.
- Note displayed figures for engine speed and ignition timing
Display field 1 = engine speed
Display field 4 = ignition timing
- Test CO content on CO tester (if deviation exists, perform repair measure).
- If actual values differ from the specifications, make the necessary repairs.NOTE: Idle speed and CO content cannot be adjusted. If deviation from specification exists, make the necessary repairs.
- If actual values differ from the specifications, make the necessary repairs.
On VAG 1551 Scan Tool (ST):
- Press --> button.
- Press buttons -0- and -6- to select "End Output" function 06, and press -Q- button to confirm input.
- Test operation of three way catalytic converter, refer to THREE WAY CATALYTIC CONVERTER (TWC) .
- Refer to notes on THREE WAY CATALYTIC CONVERTER (TWC) after completing emission and idling test.
