Headlight upper securing lugs, servicing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If headlight upper securing tabs break off due to application of excessive force, it may still be possible to service headlight in a cost-effective manner (though the headlight housing must not be damaged).

Remove headlight, refer to HEADLIGHTS (CABRIO FROM 10.98), REMOVING AND INSTALLING .
Sand headlight tab socket breakage point smooth.
Place replacement securing tab -2- on securing tab socket -3- and fasten using screw -1-.

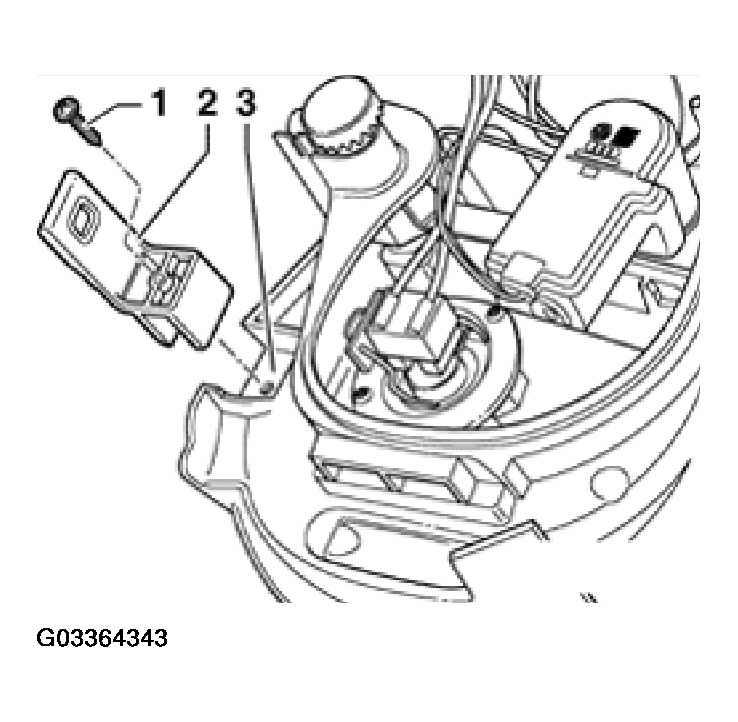

Fig 1: Placing Replacement Securing Tab On Securing Tab Socket (Cabrio From 10.98)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install headlight.
Check headlight positioning and adjust if necessary, refer to HEADLIGHTS (CABRIO FROM 10.98), ADJUSTING .
